Siemens 3RV20110KA20 Circuit Breaker 0.9-1.25A 690V AC 3-pole 1NO/1NC

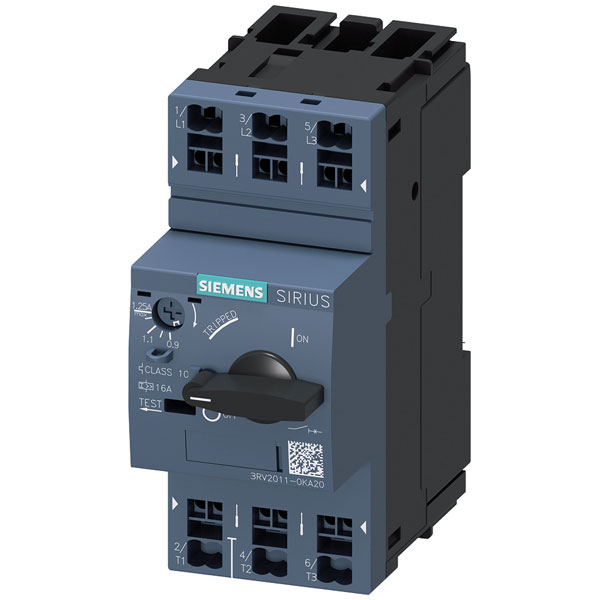

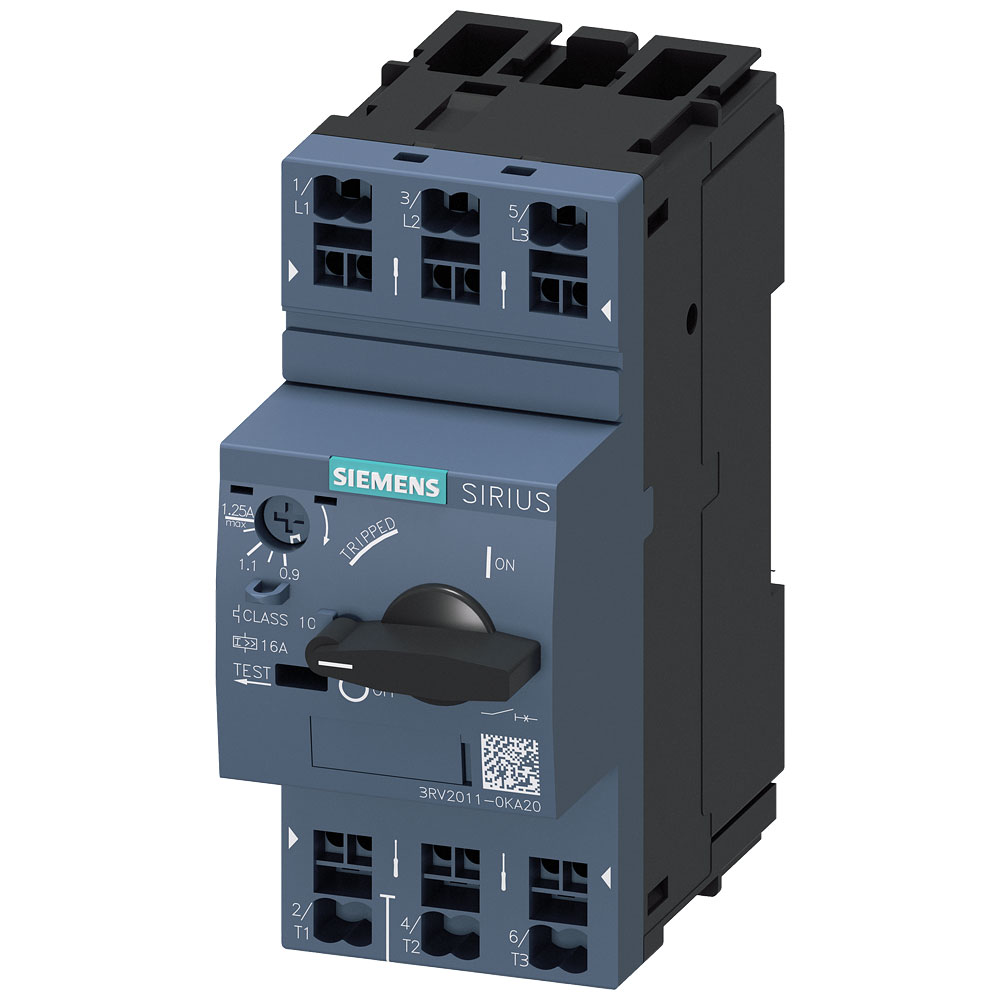

Image Representative of Range

Siemens 3RV20110KA20 Circuit Breaker 0.9-1.25A 690V AC 3-pole 1NO/1NC

Siemens
Order Code:

06-8613

Brand: Siemens MPN: 3RV20110KA20 EAN-13: 4011209724204
Qty Unit Price (Ex VAT)
1+ £62.16
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
9 in stock, despatched in 4 working days

The Siemens 3RV2011-0KA20 circuit breaker is designed for reliable overcurrent protection with an adjustment range of 0.9 - 1.25 A and a maximum switching voltage of 690 V AC. It measures 45 x 106 x 97 mm, making it suitable for compact installations. This circuit breaker is typically used in industrial applications to safeguard electrical circuits and equipment.
Type Circuit breaker
Adjustment range (amperage) 0.9 - 1.25 A
Amperage adjustment range (max.) 1.25A
Amperage adjustment range (min.) 0.9A
Connection Spring-loaded connector
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 106 x 97 mm
Height 106mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-0KA20
Misc Attribute 2 S00
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 0.2kW
Rated operation power at AC-3, 400 V 0.37kW
Rated permanent current Iu 1.25A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Spring clamp connection
Width 45mm
With integrated auxiliary switch FALSE
With integrated under voltage release FALSE
With thermal overload protection TRUE
