Siemens 3RV20110JA10 SIRIUS Circuit Breaker 0.7-1A 690V size S00

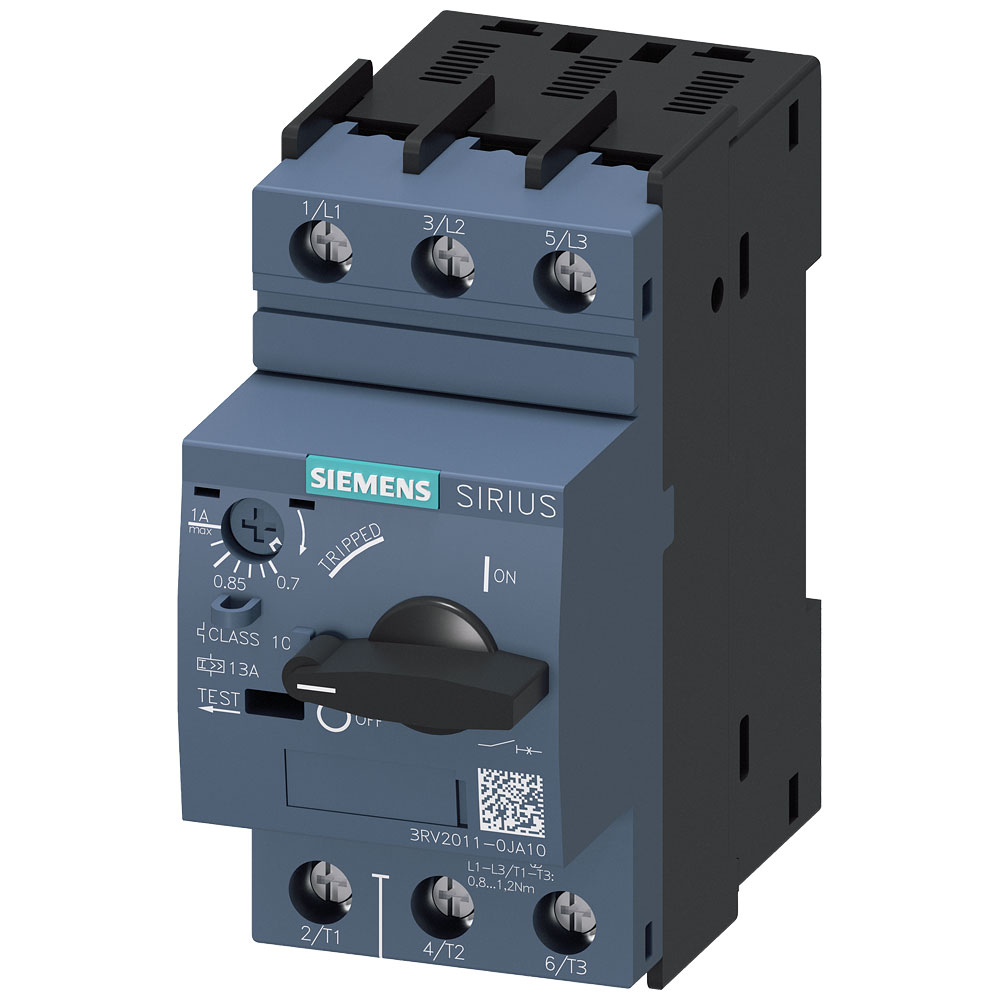

Image Representative of Range

Siemens 3RV20110JA10 SIRIUS Circuit Breaker 0.7-1A 690V size S00

Siemens
Order Code:

06-8545

Brand: Siemens MPN: 3RV20110JA10 EAN-13: 4011209712393
Qty Unit Price (Ex VAT)
1+ £61.83
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

The Siemens 3RV2011-0JA10 is a circuit breaker with an adjustment range of 0.7 to 1 A and a maximum switching voltage of 690 V AC. Its compact dimensions of 45 x 97 x 97 mm make it suitable for space-constrained applications. Typically used in industrial settings, it provides reliable protection for electrical circuits and equipment.
Type Circuit breaker
Adjustment range (amperage) 0.7 - 1 A
Amperage adjustment range (max.) 1A
Amperage adjustment range (min.) 0.7A
Connection Screws
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 97 x 97 mm
Height 97mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-0JA10
Misc Attribute 2 S00
Mounting Type DIN rail
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 0.2kW
Rated operation power at AC-3, 400 V 0.25kW
Rated permanent current Iu 1A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Screw connection
Width 45mm
With integrated auxiliary switch FALSE
With integrated under voltage release FALSE
With thermal overload protection TRUE
