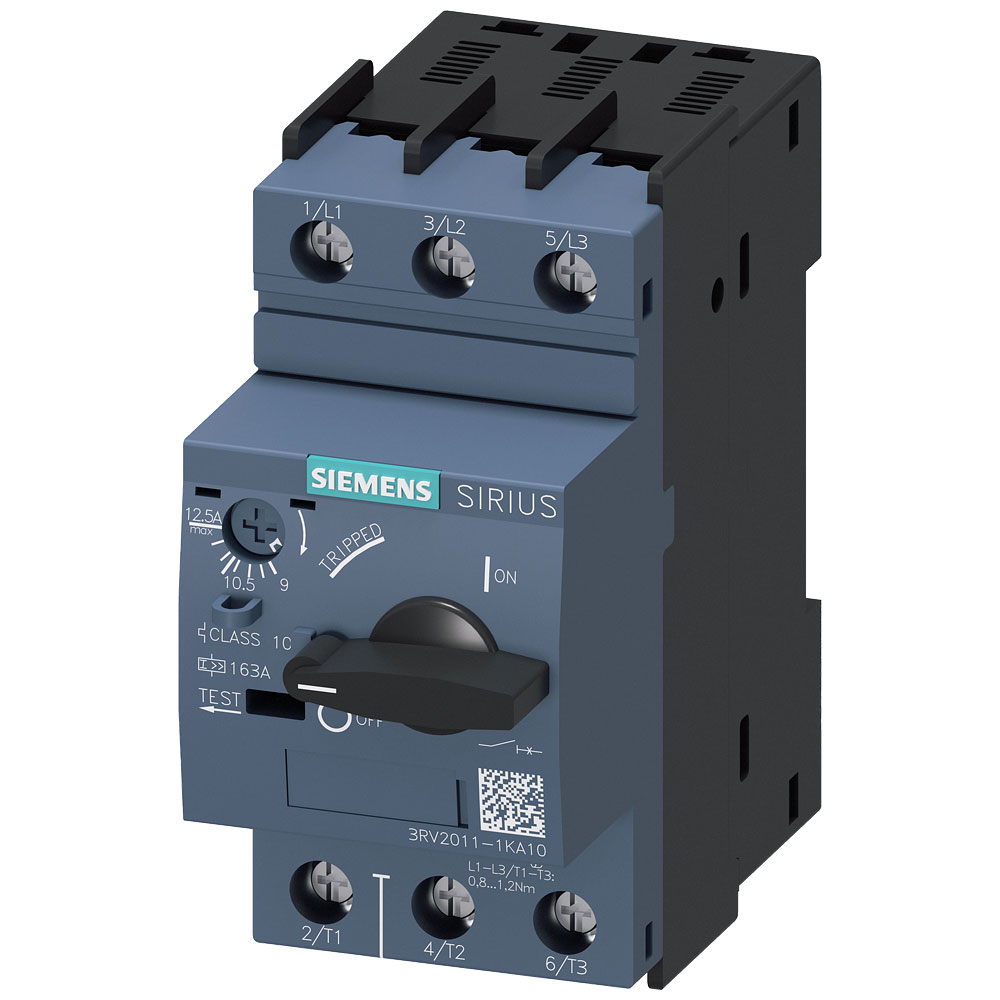

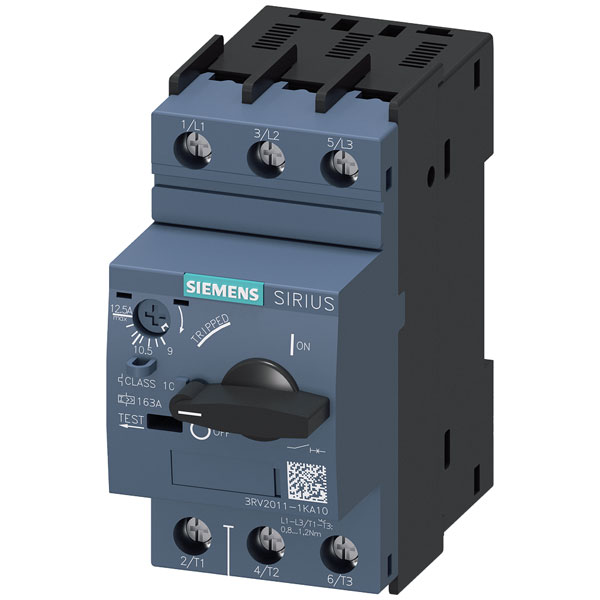

Siemens 3RV2011-1KA10 SIRIUS Circuit Breaker 9-12.5A 690V 45x97x97mm

The Siemens 3RV2011-1KA10 circuit breaker is designed for electrical systems with an adjustable amperage range of 9 to 12.5 A and can handle a maximum switching voltage of 690 V AC. Its compact dimensions of 45 x 97 x 97 mm make it suitable for space-constrained installations. This circuit breaker is commonly used in motor protection and industrial control circuits to safeguard against overloads and short circuits.

Type	Motor Ptotection Circuit-Breaker
Number of Poles	3
Rated operation power at AC-3, 230 V	3kW
Rated operation power at AC-3, 400 V	5.5kW
Adjustment range (amperage)	9 - 12.5 A
Adjustment range undelayed short-circuit release	N/A
Amperage adjustment range (max.)	12.5A
Amperage adjustment range (min.)	9A
Connection	Screws
Degree of protection (IP)	IP20
Depth	97mm
Device construction	Built-in device fixed built-in technique
Dim	(W x H x D) 45 x 97 x 97 mm
Height	97mm
IP Rating	IP20
Max. temperature	+60°C
Min. temperature	-20°C
Misc Attribute 1	3RV2011-1KA10
Misc Attribute 2	S00
Mounting method	DIN rail
Number of Pins	3-pin
Overload release current setting	9 - 12.5A
Phase failure sensitive	TRUE
Power loss	N/A
Product colour	Multicolour
Rated operating voltage	690 - 690V
Rated permanent current Iu	12.5A
Rated short-circuit breaking capacity Icu at 400 V, AC	100kA
Switch off technique	Magnetic
Switching voltage (max.)	690V AC
Type of control element	Turn button
Type of electrical connection of main circuit	Screw connection
Weight	349g
Width	45mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
With thermal overload protection	TRUE
