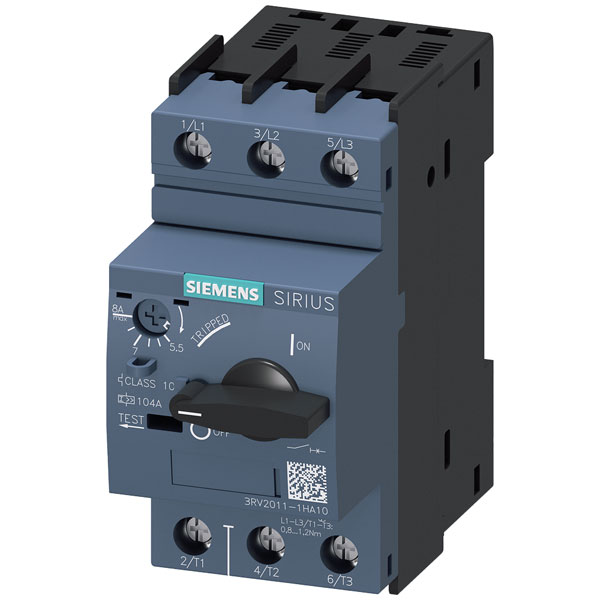

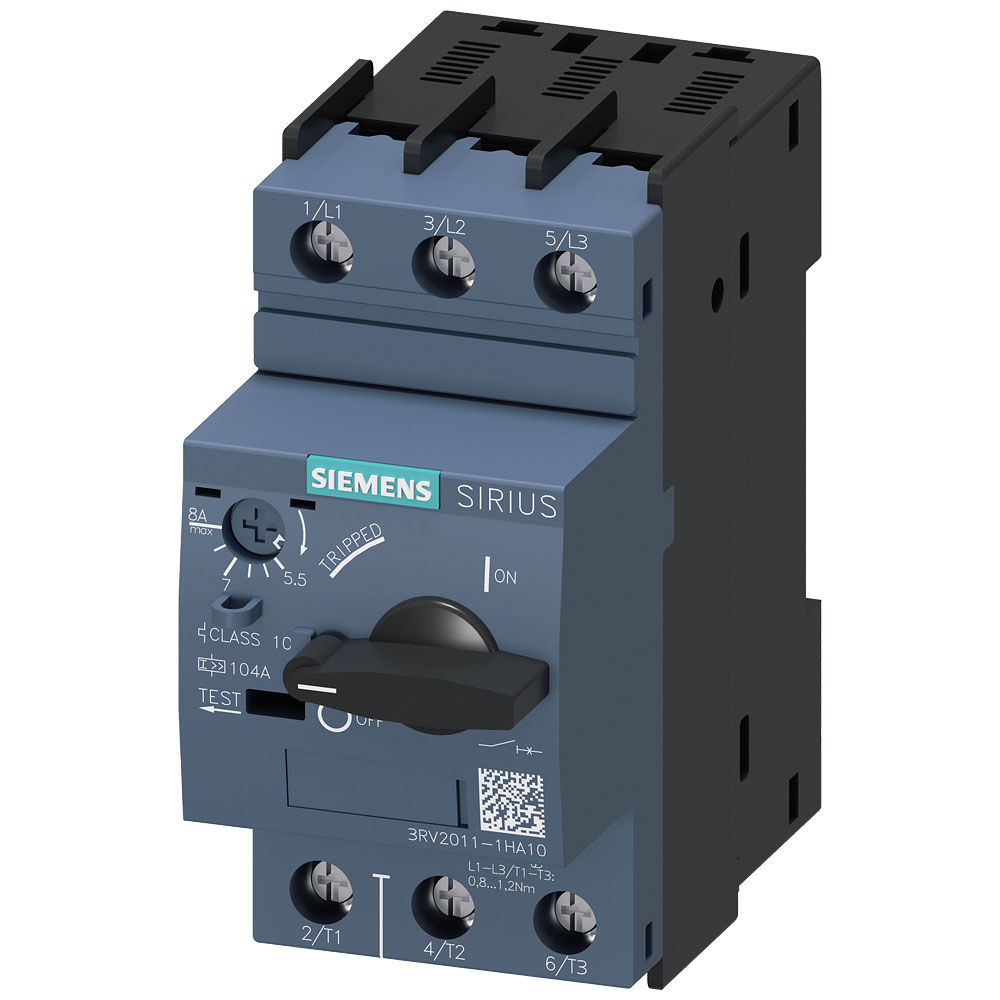

The Siemens 3RV2011-1HA10 is a versatile circuit breaker designed to protect electrical circuits with an adjustable amperage range of 5.5 - 8 A. With a maximum switching voltage of 690 V AC, it measures 45 x 97 x 97 mm, making it suitable for use in compact spaces. Commonly used in industrial and commercial settings, it effectively safeguards motors and equipment from overloads and short circuits.
| Type |
Circuit breaker |
| Adjustment range (amperage) |
5.5 - 8 A |
| Amperage adjustment range (max.) |
8A |
| Amperage adjustment range (min.) |
5.5A |
| Connection |
Screws |
| Degree of protection (IP) |
IP20 |
| Depth |
97mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(W x H x D) 45 x 97 x 97 mm |
| Height |
97mm |
| Input Current |
8 A |
| International Protection (IP) code |
IP20 |
| IP Rating |
IP20 |
| Max. temperature |
+60°C |
| Min. temperature |
-20°C |
| Misc Attribute 1 |
3RV2011-1HA10 |
| Misc Attribute 2 |
S00 |
| Mounting Type |
DIN rail |
| Number of Pins |
3-pin |
| Number of Poles |
3 |
| Operating altitude |
0 - 2000 m |
| Operating relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
-20 - 60 °C |
| Package depth |
102mm |
| Package height |
102mm |
| Package width |
49mm |
| Phase failure sensitive |
TRUE |
| Product colour |
Black |
| Rated operation power at AC-3, 230 V |
1.5kW |
| Rated operation power at AC-3, 400 V |
3kW |
| Rated permanent current Iu |
8A |
| Rated short-circuit breaking capacity Icu at 400 V, AC |
100kA |
| Storage temperature (T-T) |
-50 - 80 °C |
| Switch off technique |
Magnetic |
| Switching voltage (max.) |
690V AC |
| Type of control element |
Turn button |
| Type of electrical connection of main circuit |
Screw connection |
| Width |
45mm |
| With integrated auxiliary switch |
FALSE |
| With integrated under voltage release |
FALSE |
| With thermal overload protection |
TRUE |
