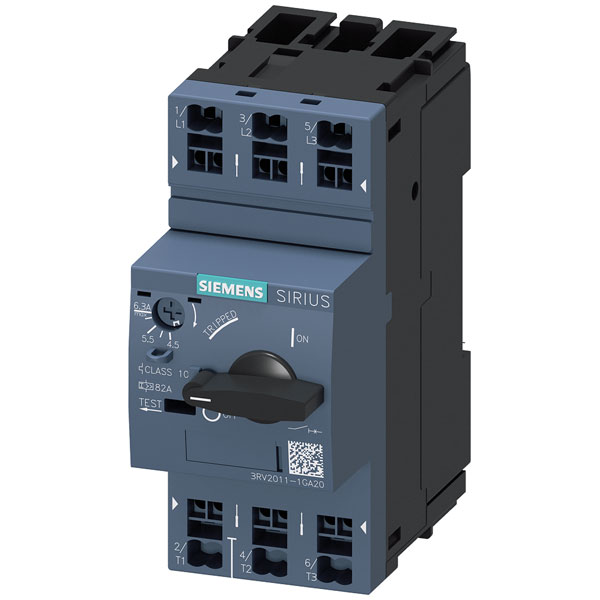

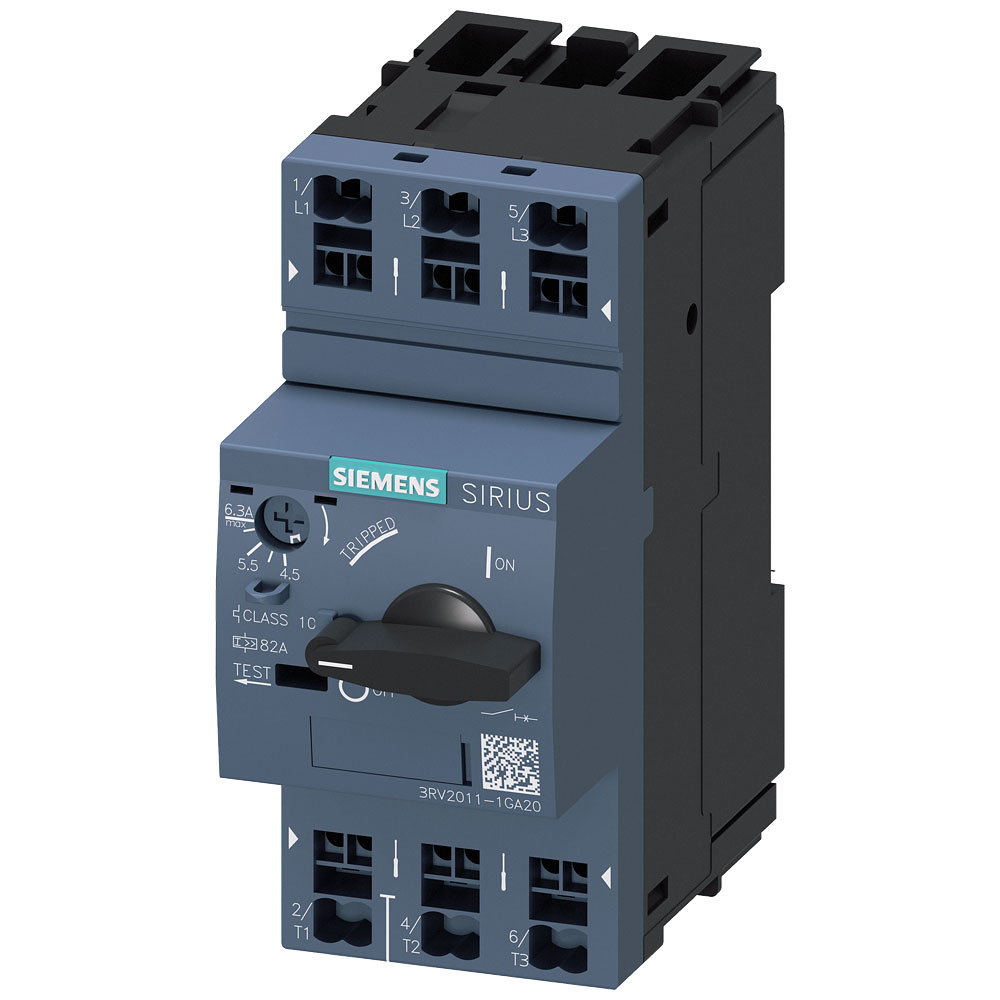

Siemens 3RV2011-1GA20 Circuit Breaker 4.5-6.3A 690V 45x106x97mm

Image Representative of Range

Siemens 3RV2011-1GA20 Circuit Breaker 4.5-6.3A 690V 45x106x97mm

Siemens
Order Code:

06-8661

Brand: Siemens MPN: 3RV20111GA20 EAN-13: 4011209724327
Qty Unit Price (Ex VAT)
1+ £67.39
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Siemens 3RV2011-1GA20 circuit breaker is designed for current ranges of 4.5 to 6.3 amps and can manage switching voltages up to 690 volts AC. Measuring 45 x 106 x 97 mm, it is suitable for use in electrical systems where reliable protection and switching are necessary. Typical applications include safeguarding and controlling motors and other electrical devices in industrial or commercial settings.
Type Circuit breaker
Adjustment range (amperage) 4.5 - 6.3 A
Amperage adjustment range (max.) 6.3A
Amperage adjustment range (min.) 4.5A
Connection Spring-loaded connector
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 106 x 97 mm
Height 106mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-1GA20
Misc Attribute 2 S00
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 1.5kW
Rated operation power at AC-3, 400 V 2.2kW
Rated permanent current Iu 6.3A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Spring clamp connection
Width 45mm
With integrated auxiliary switch FALSE
With integrated under voltage release FALSE
With thermal overload protection TRUE
