Siemens 3RV2011-1FA20 Circuit Breaker 3.5-5A 690V AC 3-pole S3

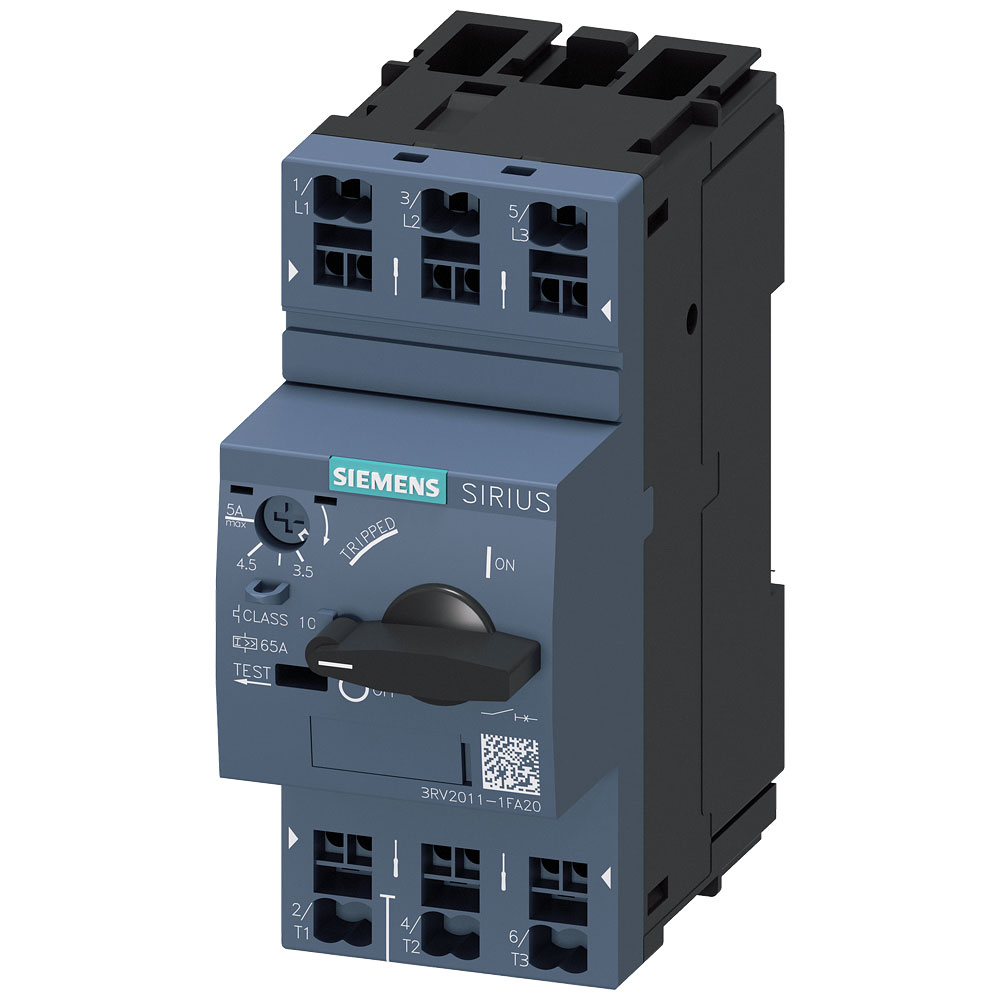

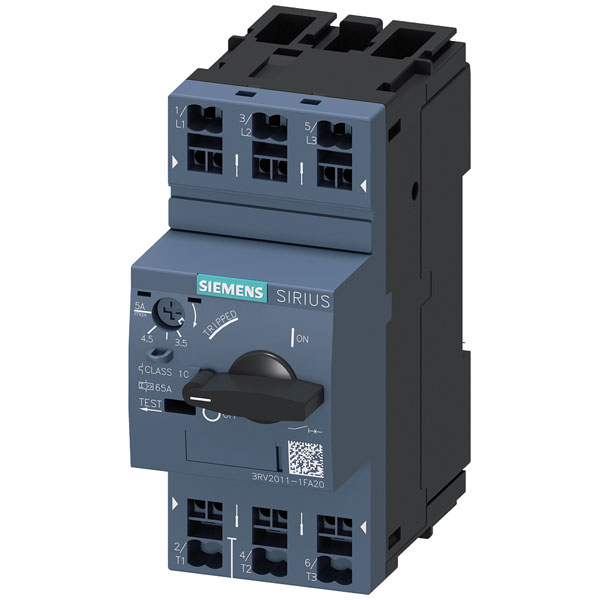

Image Representative of Range

Siemens 3RV2011-1FA20 Circuit Breaker 3.5-5A 690V AC 3-pole S3

Siemens
Order Code:

06-8657

Brand: Siemens MPN: 3RV20111FA20 EAN-13: 4011209724303
Qty Unit Price (Ex VAT)
1+ £69.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The Siemens 3RV2011-1FA20 circuit breaker is designed for use in electrical systems, with an adjustable amperage range of 3.5 to 5 A and a maximum switching voltage of 690 V AC. Its compact dimensions of 45 x 106 x 97 mm make it suitable for integration into various electrical panels. Ideal for protecting electrical circuits, it is commonly used in industrial and commercial applications to safeguard motors and wiring from overloads and short circuits.
Type Circuit breaker
Adjustment range (amperage) 3.5 - 5 A
Amperage adjustment range (max.) 5A
Amperage adjustment range (min.) 3.5A
Connection Spring-loaded connector
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 106 x 97 mm
Height 106mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-1FA20
Misc Attribute 2 S00
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 1.1kW
Rated operation power at AC-3, 400 V 1.5kW
Rated permanent current Iu 5A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Spring clamp connection
Width 45mm
With integrated auxiliary switch FALSE
With integrated under voltage release FALSE
With thermal overload protection TRUE
