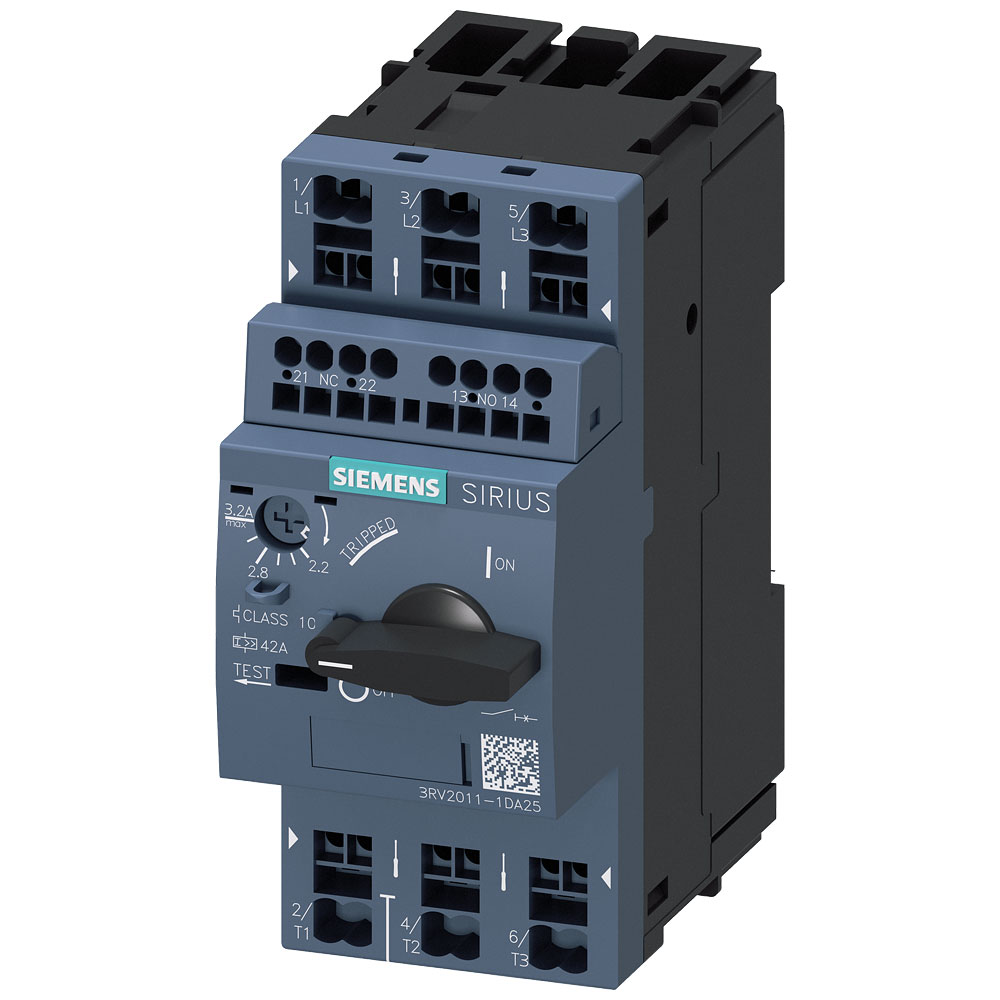

The Siemens 3RV2011-1DA25 circuit breaker, with an adjustment range of 2.2 to 3.2 A and a maximum switching voltage of 690 V AC, measures 45 x 106 x 97 mm. This device is typically used to protect electrical circuits from overload and short circuits in industrial settings. Its compact size and robust performance make it ideal for integration into control systems and automation applications.
| Type |
Circuit breaker |
| Adjustment range (amperage) |
2.2 - 3.2 A |
| Amperage adjustment range (max.) |
3.2A |
| Amperage adjustment range (min.) |
2.2A |
| Connection |
Spring-loaded connector |
| Degree of protection (IP) |
IP20 |
| Depth |
97mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(W x H x D) 45 x 106 x 97 mm |
| Height |
106mm |
| IP Rating |
IP20 |
| Max. temperature |
+60°C |
| Min. temperature |
-20°C |
| Misc Attribute 1 |
3RV2011-1DA25 |
| Misc Attribute 2 |
S00 |
| Number of Pins |
3-pin |
| Number of Poles |
3 |
| Phase failure sensitive |
TRUE |
| Rated operation power at AC-3, 230 V |
0.6kW |
| Rated operation power at AC-3, 400 V |
1.1kW |
| Rated permanent current Iu |
3.2A |
| Rated short-circuit breaking capacity Icu at 400 V, AC |
100kA |
| Switch off technique |
Magnetic |
| Switching voltage (max.) |
690V AC |
| Type of control element |
Turn button |
| Type of electrical connection of main circuit |
Spring clamp connection |
| Width |
45mm |
| With integrated auxiliary switch |
TRUE |
| With integrated under voltage release |
FALSE |
| With thermal overload protection |
TRUE |
