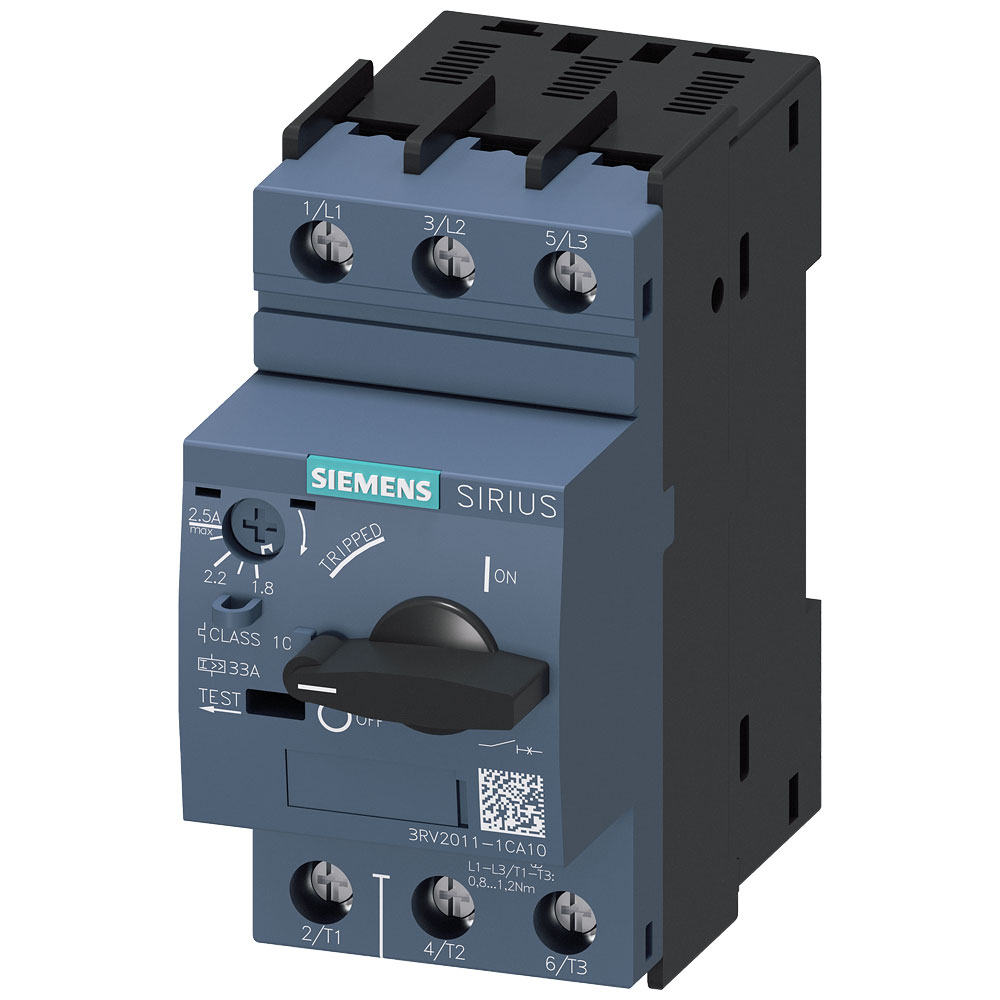

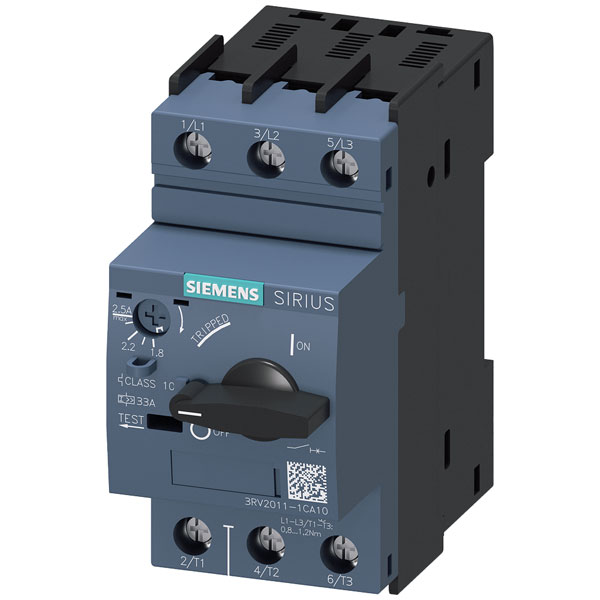

The Siemens 3RV2011-1CA10 circuit breaker is designed for protection within an amperage adjustment range of 1.8 to 2.5 A and supports a maximum switching voltage of 690 V AC. With dimensions of 45 x 97 x 97 mm, it is ideal for safeguarding electrical circuits and equipment. Typical applications include use as an auxiliary contactor in industrial electrical panels.
| Type |
Motor Ptotection Circuit-Breaker |
| Number of Poles |
3 |
| Rated operation power at AC-3, 230 V |
0.4kW |
| Rated operation power at AC-3, 400 V |
0.75kW |
| IP Rating |
IP20 |
| Adjustment range (amperage) |
1.8 - 2.5 A |
| Adjustment range undelayed short-circuit release |
N/A |
| Amperage adjustment range (max.) |
2.5A |
| Amperage adjustment range (min.) |
1.8A |
| Circuit breaker type |
Motor protective circuit breaker |
| Compliance certificates |
REACH, RoHS, WEEE |
| Connection |
Screws |
| Country of origin |
Germany |
| Degree of protection (IP) |
IP20 |
| Depth |
97mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(W x H x D) 45 x 97 x 97 mm |
| Height |
97mm |
| Input frequency |
50 / 60 Hz |
| International Protection (IP) code |
IP20 |
| Maximum Temperature |
+60°C |
| Min. temperature |
-20°C |
| Misc Attribute 1 |
3RV2011-1CA10 |
| Misc Attribute 2 |
S00 |
| Number of pins |
3-pin |
| Operating altitude |
0 - 2000m |
| Operating relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
-20 - 60°C |
| Overload release current setting |
1.8 - 2.5A |
| Package depth |
102mm |
| Package height |
102mm |
| Package width |
49mm |
| Phase failure sensitive |
TRUE |
| Pollution degree |
3 |
| Power loss |
N/A |
| Rated current |
2.5 A |
| Rated operating voltage |
690 - 690V |
| Rated permanent current Iu |
2.5A |
| Rated short-circuit breaking capacity Icu at 400 V, AC |
100kA |
| Rated voltage |
690 V |
| Storage temperature (T-T) |
-50 - 80°C |
| Sustainability compliance |
Yes |
| Switch off technique |
Magnetic |
| Switching voltage (max.) |
690V AC |
| Tripping method |
Thermomagnetic |
| Type of control element |
Turn button |
| Type of electrical connection of main circuit |
Screw connection |
| Weight |
346g |
| Width |
45mm |
| With integrated auxiliary switch |
FALSE |
| With integrated under voltage release |
FALSE |
| With thermal overload protection |
TRUE |
