Siemens 3RV2011-0KA15 Circuit Breaker 0.9-1.25A 690V 3-pole

Image Representative of Range

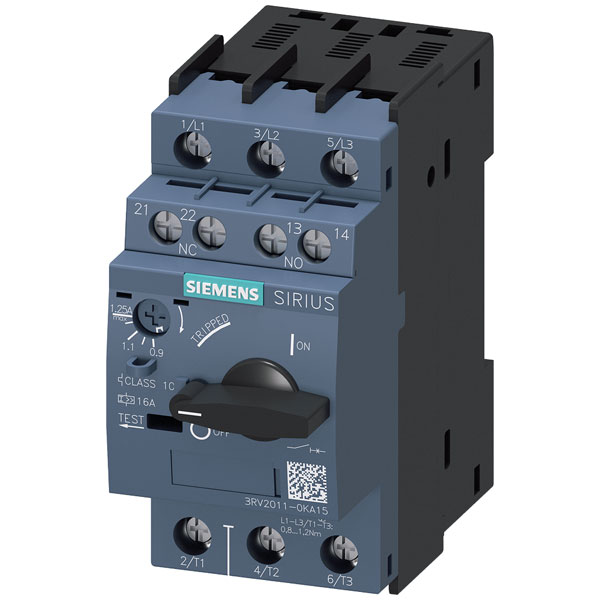

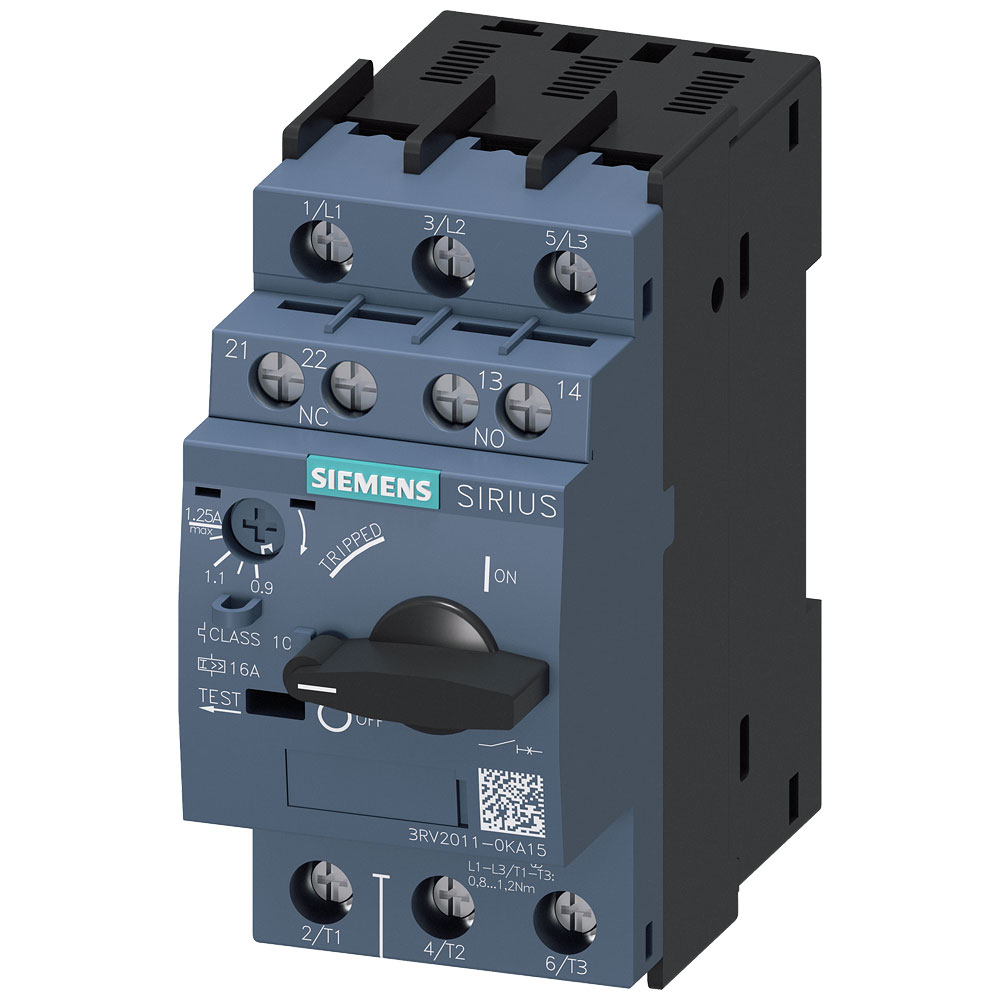

Siemens 3RV2011-0KA15 Circuit Breaker 0.9-1.25A 690V 3-pole

Siemens
Order Code:

06-8589

Brand: Siemens MPN: 3RV20110KA15 EAN-13: 4011209841086
Qty Unit Price (Ex VAT)
1+ £82.24
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Siemens 3RV2011-0KA15 circuit breaker is designed with an adjustable current range of 0.9 to 1.25 amps and can handle a maximum switching voltage of 690 volts AC. This compact breaker, measuring 45 x 97 x 97 mm, is typically used in protecting electrical circuits from overload and short circuits. It is ideal for applications in industrial installations and control panels.
Type Circuit breaker
Adjustment range (amperage) 0.9 - 1.25 A
Amperage adjustment range (max.) 1.25A
Amperage adjustment range (min.) 0.9A
Connection Screws
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 97 x 97 mm
Height 97mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-0KA15
Misc Attribute 2 S00
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 0.2kW
Rated operation power at AC-3, 400 V 0.37kW
Rated permanent current Iu 1.25A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Screw connection
Width 45mm
With integrated auxiliary switch TRUE
With integrated under voltage release FALSE
With thermal overload protection TRUE
