Siemens 3RV2011-0JA15 Circuit Breaker 0.7-1 A 690 V AC 45x97x97mm

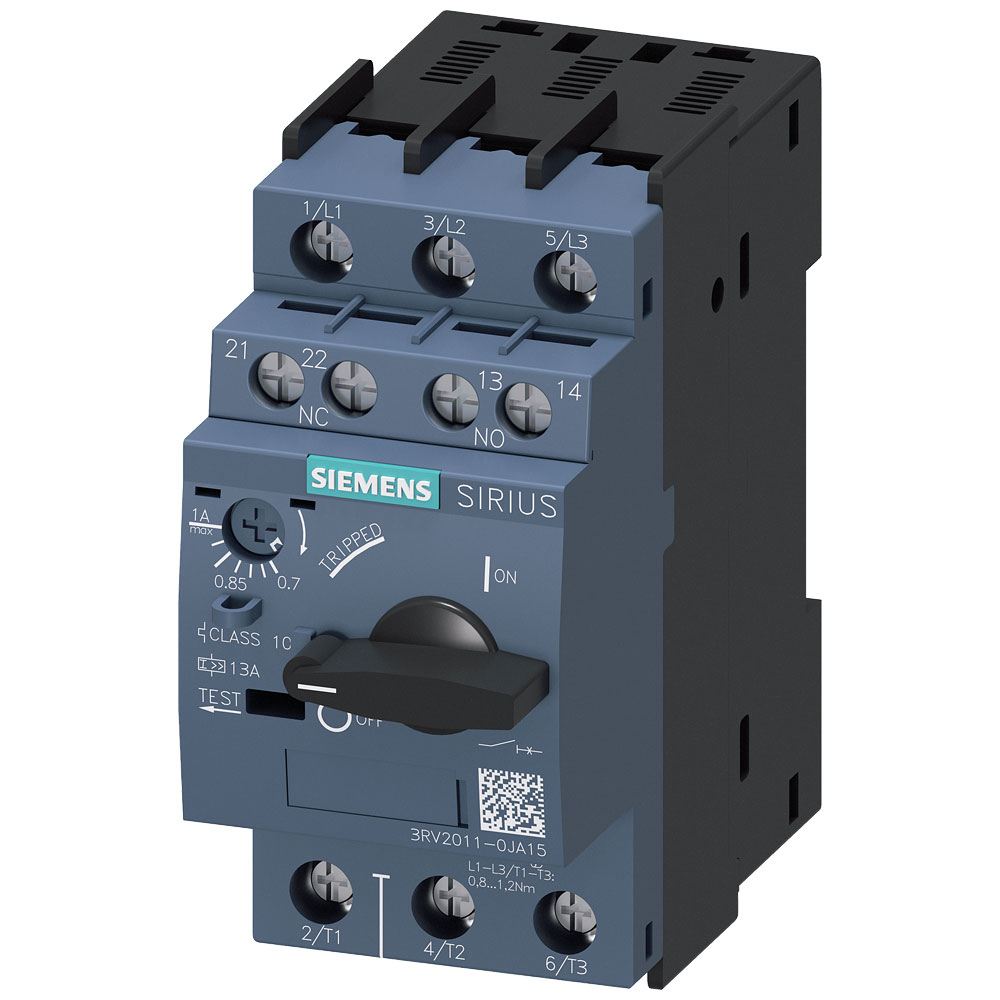

Image Representative of Range

Siemens 3RV2011-0JA15 Circuit Breaker 0.7-1 A 690 V AC 45x97x97mm

Siemens
Order Code:

06-8547

Brand: Siemens MPN: 3RV20110JA15 EAN-13: 4011209841062
Qty Unit Price (Ex VAT)
1+ £78.55
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

Siemens manufactures the 3RV2011-0JA15 circuit breaker with an adjustment range of 0.7 to 1 A and a maximum switching voltage of 690 V AC. It measures 45 x 97 x 97 mm and is typically used in protecting electrical circuits from overloads and short circuits. This circuit breaker is ideal for use in industrial and commercial electrical systems.
Type Circuit breaker
Adjustment range (amperage) 0.7 - 1 A
Amperage adjustment range (max.) 1A
Amperage adjustment range (min.) 0.7A
Connection Screws
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 97 x 97 mm
Height 97mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-0JA15
Misc Attribute 2 S00
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 0.2kW
Rated operation power at AC-3, 400 V 0.25kW
Rated permanent current Iu 1A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Screw connection
Width 45mm
With integrated auxiliary switch TRUE
With integrated under voltage release FALSE
With thermal overload protection TRUE
