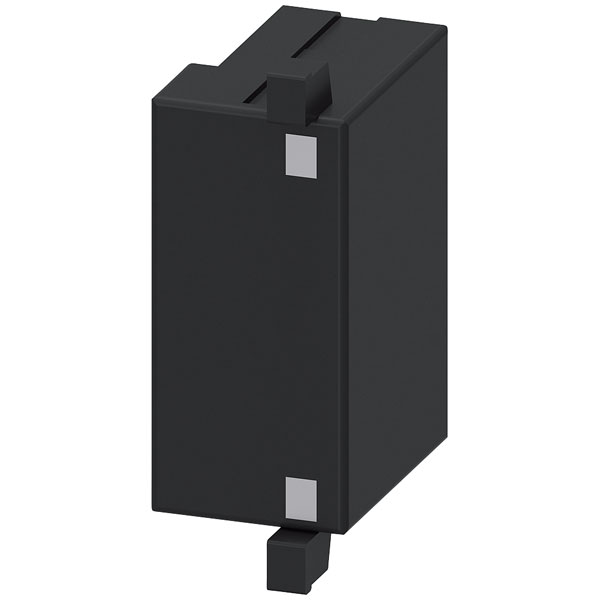

Siemens 3RT29261BD00 S2 Contactor varistor 240V AC motor protection

The Siemens 3RT2926-1BD00 Contactor Varistor is designed to protect electrical contactors operating at 240 V AC. It enhances the contactor's lifespan by suppressing voltage spikes during operation. Common applications include industrial machinery and automation systems.

Type	Contactor varistor
Coil Voltage	240V AC
Depth	12mm
Dimensions	(W x H x D) 30 x 19 x 12 mm
Function	Varistor (voltage-sensitive resistor)
Height	19mm
Maximum Temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	3RT2926-1BD00
Misc Attribute 2	S0
Mounting Style	Push-fit
Operating voltage AC 50 Hz	127 - 240V
Operating voltage AC 60 Hz	127 - 240V
Operating voltage DC	150 - 250V
Voltage type (operating voltage)	N/A
Voltage type for actuating	AC/DC
Width	30mm
With LED indication	N/A
