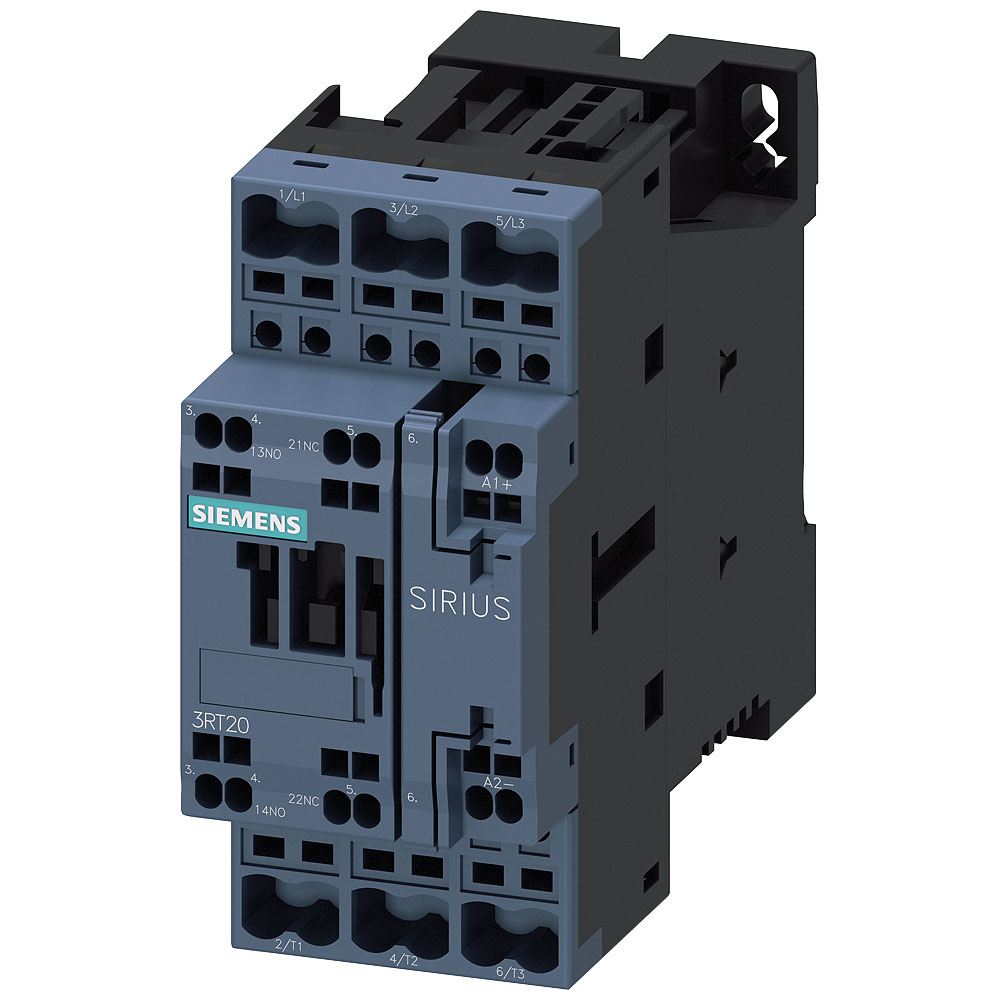

Siemens 3RT2024-2BB40 Contactor 3-pole 12A 5.5kW 400V 1NO+1NC 690V AC/DC

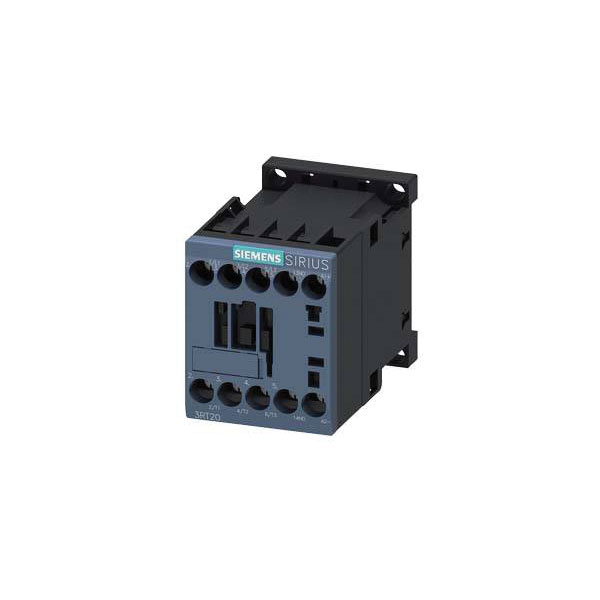

Image Representative of Range

Siemens 3RT2024-2BB40 Contactor 3-pole 12A 5.5kW 400V 1NO+1NC 690V AC/DC

Siemens
Standard range
Order Code:

06-8447

Brand: Siemens MPN: 3RT20242BB40
Qty Unit Price (Ex VAT)
1+ £75.72
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

The Siemens 3RT2024-2BB40 is an electrical contactor designed for use in circuits up to 690 V AC. It features three poles and is typically used for controlling electric motors in industrial applications. Siemens is renowned for its reliable and durable electrical components.
Type Electrical contactor
Connection Spring-loaded connector
Contact type 3 makers
Depth 107mm
Dim (W x H x D) 45 x 102 x 107 mm
Durability 1000 0000
Height 102mm
IP rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2024-2BB40
Misc Attribute 2 S0
No. of pins 3-pin
Nominal voltage 690V AC
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as normally open contact 1
Number of normally open contacts as main contact 3
Rated operation current Ie at AC-1, 400 V 40A
Rated operation current Ie at AC-3, 400 V 12A
Rated operation current Ie at AC-4, 400 V 12.5A
Rated operation power at AC-3, 400 V 5.5kW
Rated operation power NEMA 5.516240624
RoHS-compliant Yes
Suitable for distribution board TRUE
Type of electrical connection of main circuit Spring clamp connection
Voltage type for actuating DC
Width 45mm
