Siemens 3RT20161AB011AA0 Contactor 690V AC 9A 4kW 1NO+1NC 3-pole S0

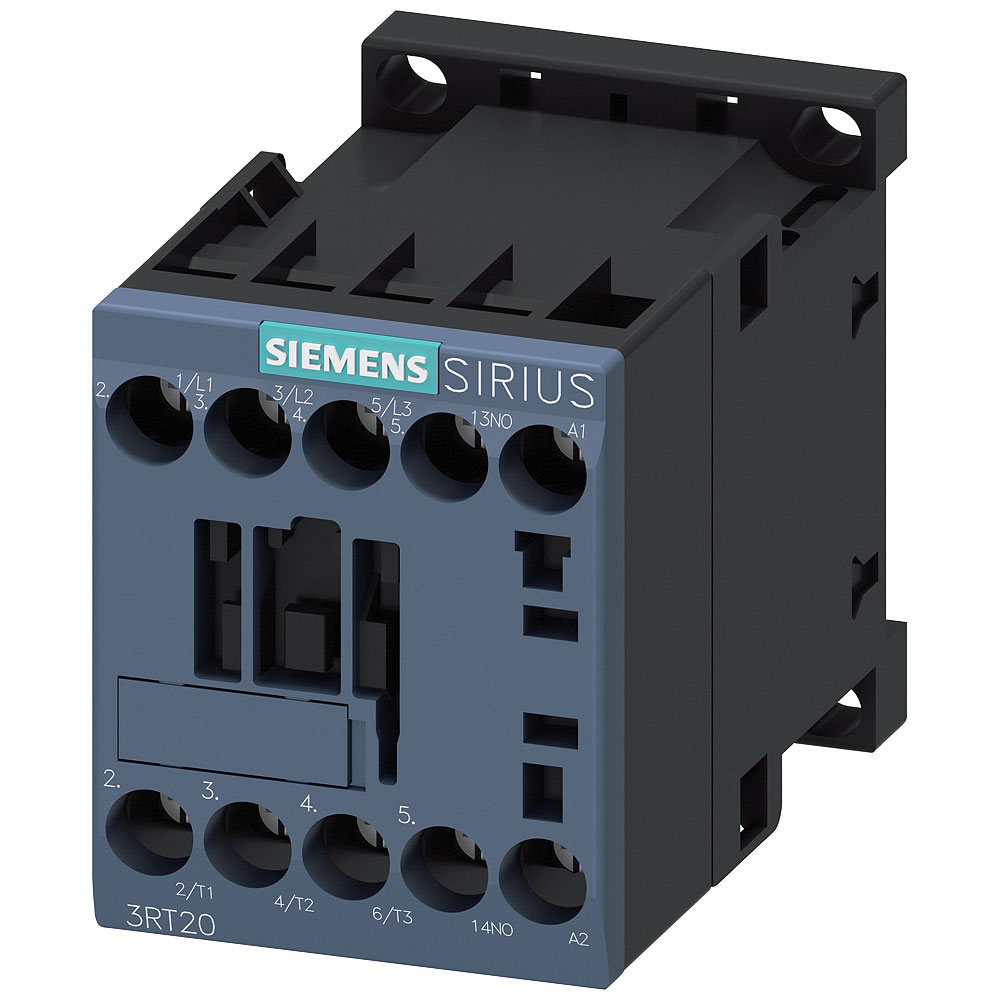

Image Representative of Range

Siemens 3RT20161AB011AA0 Contactor 690V AC 9A 4kW 1NO+1NC 3-pole S0

Siemens
Order Code:

06-8387

Brand: Siemens MPN: 3RT20161AB011AA0 EAN-13: 4011209953253
Qty Unit Price (Ex VAT)
1+ £37.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
8 in stock, despatched in 4 working days

The Siemens 3RT2016-1AB01-1AA0 is an electrical contactor designed for three-phase current protection up to 690 V AC. It features functions like star-delta and semiconductor protection, making it suitable for applications including motor and heating current protection. Typical uses include serving as an AC switch or motor contactor in modular installations.
Type Electrical contactor
Contact Type 3 makers
Depth 73mm
Dim (W x H x D) 45 x 58 x 73 mm
Durability 3000 0000
Height 58mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2016-1AB01-1AA0
Misc Attribute 2 S00
Nominal Voltage 690V AC
Number of auxiliary contacts as normally open contact 1
Number of normally open contacts as main contact 3
Number of Pins 3-pin
Rated operation current Ie at AC-1, 400 V 22A
Rated operation current Ie at AC-3, 400 V 9A
Rated operation current Ie at AC-4, 400 V 8.5A
Rated operation power at AC-3, 400 V 4kW
Rated operation power at AC-4, 400 V 4.0kW
Rated operation power NEMA 3.677493749
Type of electrical connection of main circuit Screw connection
Voltage type for actuating AC
Width 45mm
