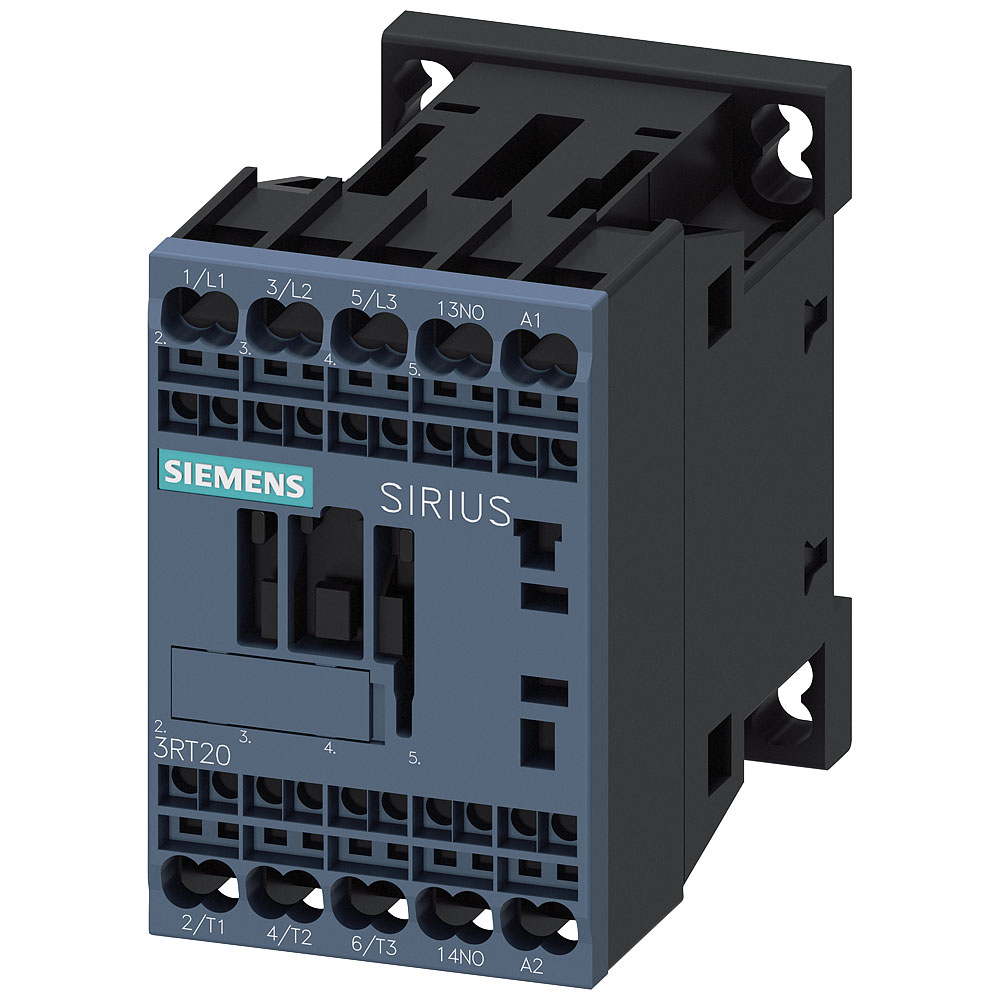

Siemens 3RT2016-2AP01 Power Contactor 3-pole 16A 7.5kW Size S00

Image Representative of Range

Siemens 3RT2016-2AP01 Power Contactor 3-pole 16A 7.5kW Size S00

Siemens
Order Code:

06-8397

Brand: Siemens MPN: 3RT20162AP01 EAN-13: 4011209785335
Qty Unit Price (Ex VAT)
1+ £33.92
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
21 available to back orderBack-order availability date - 10/01/2026

The Siemens 3RT2016-2AP01 electrical contactor is designed for use in circuits rated up to 690 V AC and is suitable for switching motors in industrial and commercial applications. This compact device offers reliable performance with three-pole contact configurations, ensuring efficient and safe operation. It is ideal for controlling electrical loads in automation systems and motor control centres.
Type Electrical contactor
Coil Voltage 690V AC
Terminals 3-pin
Connection Spring-loaded connector
Contact Type 3 makers
Depth 73mm
Dimensions (W x H x D) 45 x 70 x 73 mm
Durability 3000 0000
Height 70mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2016-2AP01
Misc Attribute 2 S00
Number of auxiliary contacts as normally open contact 1
Number of normally open contacts as main contact 3
Rated operation current Ie at AC-1, 400 V 22A
Rated operation current Ie at AC-3, 400 V 9A
Rated operation current Ie at AC-4, 400 V 8.5A
Rated operation power at AC-3, 400 V 4kW
Rated operation power NEMA 3.677493749
Suitable for distribution board TRUE
Type of electrical connection of main circuit Spring clamp connection
Voltage type for actuating AC
Width 45mm
