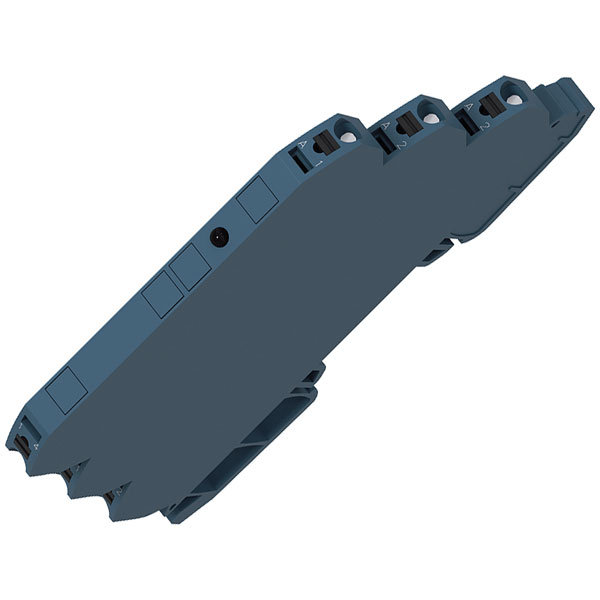

The Siemens 3RQ3018-2AB00 is an output coupler with one change-over contact, available in a pack of five. It is designed for versatile electrical interface applications, providing reliable relay switching capabilities. This component is typically used in automation and control systems to facilitate signal and power transfer.
| Complete with socket |
FALSE |
| Connection |
Spring-loaded connector |
| Contact Material |
AgSnO2 |
| Contact Type |
1 change-over |
| Degree of protection (IP) |
IP20 |
| Depth |
72.5mm |
| Dim |
(W x H x D) 6.2 x 93 x 72.5 mm |
| Drive, polarization |
Polarized |
| Drive, switching attitude |
Mono stable |
| Durability |
1.0E7 |
| Electrical lifespan |
100000 |
| Fall Time |
14ms |
| Height |
93mm |
| IP Rating |
IP20 |
| Material contact |
N/A |
| Material of contact insert |
N/A |
| Material of contact surface |
N/A |
| Max. starting current |
N/A |
| Max. temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute |
3RQ3018-2AB00 |
| Nominal Current |
N/A |
| Number of contacts as change-over contact |
1 |
| Number of contacts as normally closed contact |
N/A |
| Number of contacts as normally open contact |
N/A |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Operating voltage DC |
N/A |
| Rated control supply voltage AC 50 Hz |
N/A |
| Rated control supply voltage AC 60 Hz |
N/A |
| Rated control supply voltage DC |
N/A |
| Relay technology category according to IEC 61810-7 |
N/A |
| Response Time |
12ms |
| Type |
Output coupler |
| Type of electric connection |
N/A |
| Type of switch contact |
Single contact |
| Voltage type (operating voltage) |
N/A |
| Voltage type for actuating |
AC/DC |
| Width |
6.2mm |
| With detachable clamps |
FALSE |
| With forced-guided contacts |
FALSE |
| With LED indication |
TRUE |
