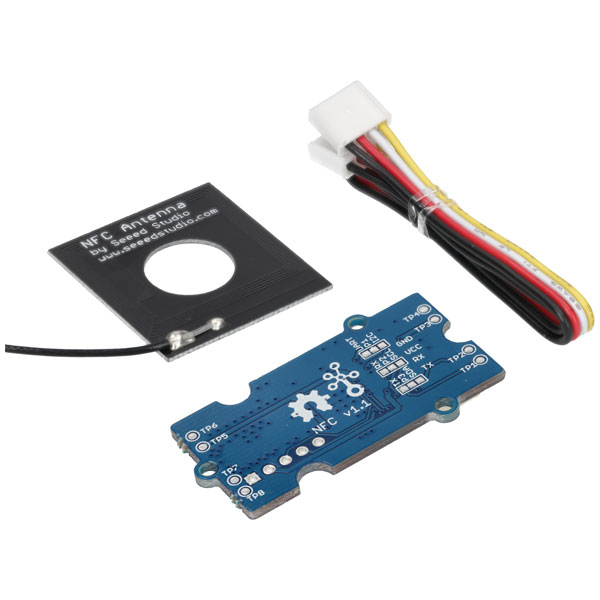

Seeed 113020006 Grove - NFC

Seeed 113020006 Grove - NFC - Near Field Communication (NFC) is a set of short-range wireless technologies.

Grove NFC features a highly integrated transceiver module PN532 which handles contactless communication at 13.56MHz. You can read and write a 13.56MHz tag with this module or implement point to point data exchange with two NFCs.
Grove NFC is designed to use I2C or UART communication protocols and UART is the default mode. In addition, it has an independent PCB antenna which can easily stretch out of any enclosure you use, leaving more room for you to design the exterior of your project.

• Access control system
• Electric business card
• IC card
• Smart Home
• Electric toys
• IoT systems
• NFC pay
• Working Voltage: 3.3V
• Working Current: Static Mode: 73mA
• Write/Read Mode: 83mA
• Host Interface: I2C, UART(default)
• Max Operating Distance: 28mm
• Communication frequency: 13.56MHz
• Dimensions: 130mm x 90mm x 8mm
