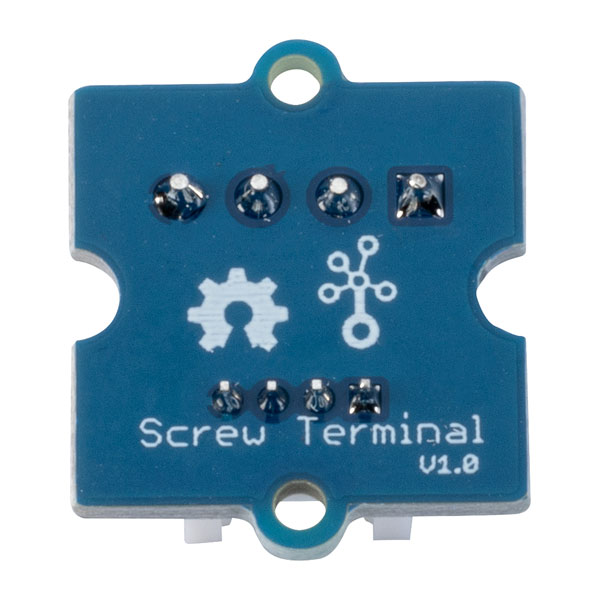

Seeed 103020007 Grove - Screw Terminal

Seeed Studio
Order Code:

75-1118

Brand: Seeed Studio MPN: 103020007
Qty Unit Price (Ex VAT)
1+ £2.79
5+ £2.71
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
13 in stock, despatched same dayAdditional quantity lead time 5 months

Seeed 103020007 Grove - Screw Terminal with four 3.5mm pitch pins, rate up to 125V @ 6A. The terminal can accept 30 to 20AWG wire which makes it the most common pitch screw terminal.
This grove has four ports including GND, VCC and two other undefined ports and the screw terminals are commonly used to connect a chassis ground, such as on a record player or a surge protector. Most public address systems in buildings also use them for speakers, and sometimes for other outputs and inputs.
  • Dimensions: 89mm x140mm x12mm
  • Weight: G.W 10g
  • Battery: Excluded
  • Operating Voltage: 3.3~5V
  • Pitch pins: ×4
  • Diameter: 3.5mm
Type Grove - Screw Terminal
