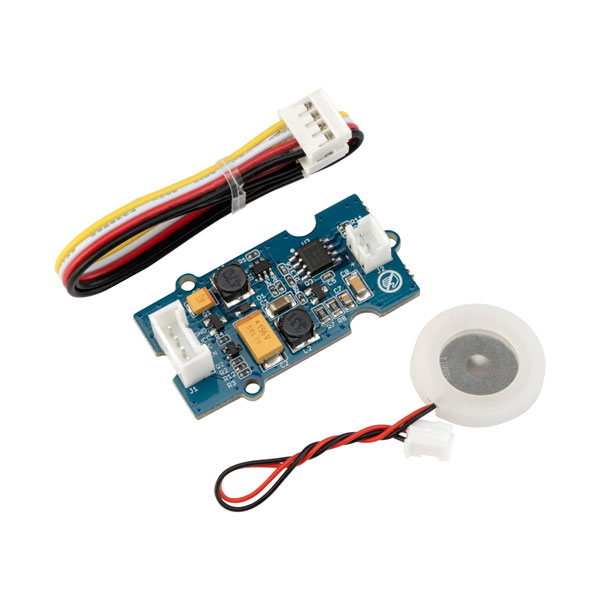

Seeed 101020090 Grove - Water Atomization v1.0

Seeed 101020090 Grove - Water Atomization v1.0 is a perfect module for a humidifier with Arduino. You can also develop more advanced and interesting projects with digital scent technology and any other situations in which atomization is required.

• Heated with ultrasound: It has the characteristics of high humidification efficiency, low power consumption
• Easy to prototype: Detachable atomizer is more convenient for prototype development
• Well applied to vast projects: Good stability and high safety
• Easy to build: Easy to build various interesting, smart and fashionable applications
• Grove compatible interface: The product ensures "Plug and Play" and could be versatile for various applications of Grove
• Operating voltage: 5.0V(DC)
• Ripple(at Max power): ≤100 mV
• Max power: 2W
• Peak output voltage: 65±5V
• Operating frequency: 105±5kHz
• Chip: ETA1617、NE555
• Dimensions: 140mm x85mm x11.6mm

Type	Grove - Water Atomization
Dimensions	140mm x85mm x11.6mm
Operating Frequency	105±5kHz
