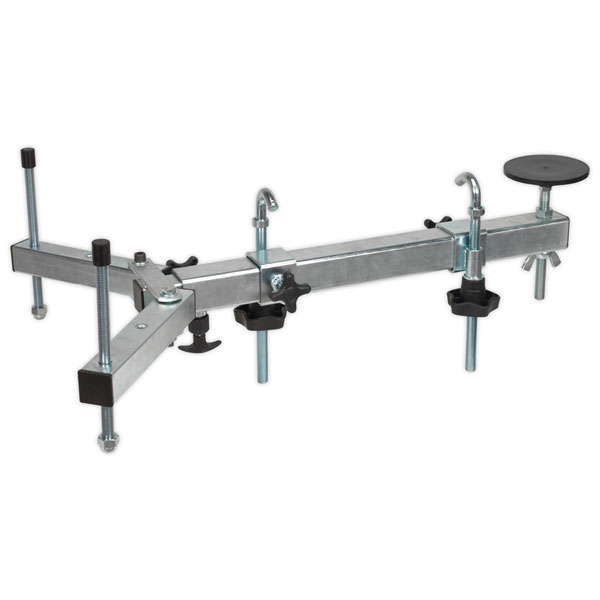

Sealey VS0110 Under Vehicle Engine/Gearbox Support

Designed to support the engine or gearbox when mountings or gearbox are being removed. Ideal when replacing clutches or timing belts. Removes the need for using a transmission jack or engine support beam. Fully adjustable, making the unit suitable for most transverse and in-line configurations. Fitted by suspending underneath the vehicle using support hooks which counter-balances against the underside of the vehicle.

• Designed to support the engine or gearbox when mountings or gearbox are being removed.
• Ideal when replacing clutches or timing belts.
• Removes the need for using a transmission jack or engine support beam.
• Fully adjustable, making the unit suitable for most transverse and in-line configurations.
• Fitted by suspending underneath the vehicle using support hooks which counter-balances against the underside of the vehicle.
• Model No. VS0110

Type	Hydraulic Gearbox Lift
Load Capacity	400kg
Capacity	400kg
Distance Between Inner and Outer Crossbeam Support Feet	350mm/480mm
Frame width	537mm
Minimum/Maximum Length	640-970mm
Nett Weight	10.0kg
Width	560mm
