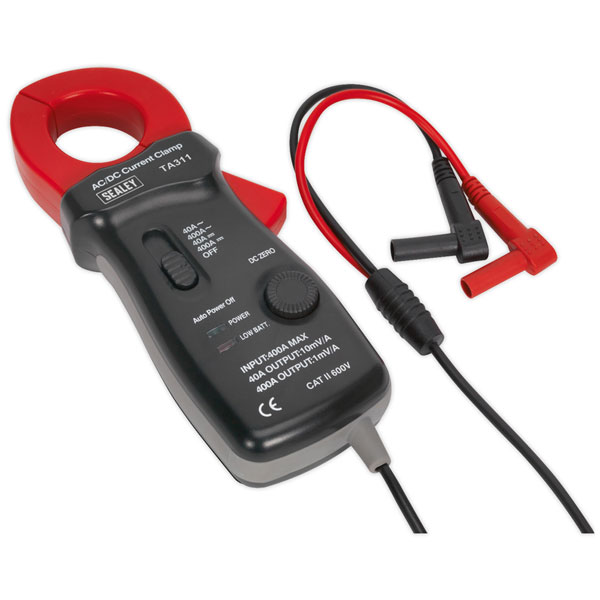

Sealey TA311 40A/400A AC/DC Current Clamp - 28mm

Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.

• Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
• Suitable for measuring both AC and DC current, without breaking into the circuit, with a 40A and 400A setting for accurate measurement.
• Features a Ø28mm clamp ideal for testing wire bundles.
• Fitted with 4mm banana connectors and supplied in storage pouch.
• Powered by 9V battery (supplied).
• Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
• Model No. TA311

Type	Current clamp
400A (output 1mV/A)	DC or rms AC for 400mV range of the multimeter.
40A (output 10mV/A)	DC or rms AC for 200mV or 400mV range of the multimeter.
Battery type	9V DC
Current	40 to 400A
Diameter	28mm
Low Battery Indicator	LED red
Nett Weight	0.36kg
Operating Temperature	0°C to 50°C.
Output Connection	Banana plugs (red & black)
Storage temperature	-15°C to 50°C.
TA311 Captured Conductor Size	Ø20mm maximum
TA311 Dimensions (H x W x D)	175mm x 70mm x 38mm
Typical Battery Life	80hrs (alkaline)
Weight	240g
