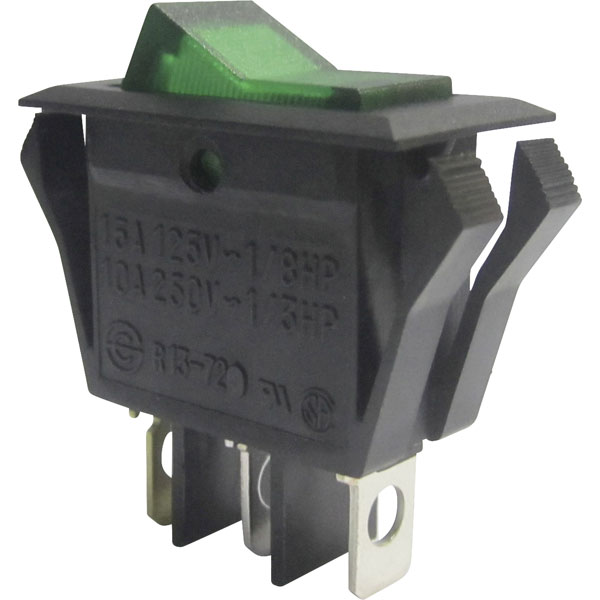

SCI R13-72B-01 10A Rocker Switch Green 3P SPST On-Off

An SPST rocker switch with a current rating of 10A and green neon illumination.

• Optional front panel cut-out (for front panel thicknesses): 28.8 x 14mm (1.25 to 2mm) or 29.2 x 14mm (2 to 3mm)
• Bulb type: Neon
• Casing/button colour: Black, Green
• Connections: Blade terminal 6.3mm
• Contact resistance: Max 50mΩ
• Dielectric strength: 1500V/AC 1min
• Front panel cut-out: 28.6 x 14.0mm
• Front panel thickness: 0.75 to 1.25mm
• Function: latching
• Insulation resistance: Min 100MΩ/500V DC
• Light colour: Green
• Lighting type: area illumination
• Material: Polyamide
• Print motif: None
• Switch position: 1x Off/On
• Switching current (max.): 10A
• Switching voltage: 250V AC
• SCI type: R13-72B-01 Green
