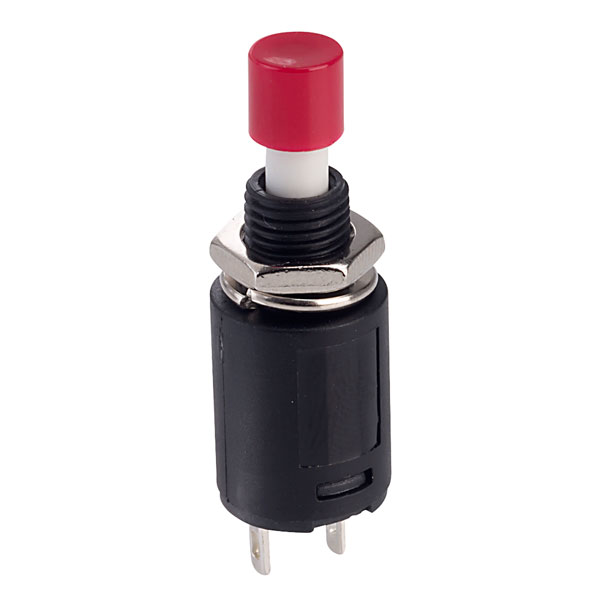

Low-cost, panel mounting, latching 2P SPST push switch with small round red button.
- Off-On operation
- 3A contact current
- 250V AC contact voltage
- Silver-plated brass contact
- Solder lug terminal
- Solder pins measure approx 6 x 2 x 0.5mm
- Actuator 6 x 22.5mm
- Fits into 7mm panel cut-out
- Max thickness 4mm
- Nylon frame to UL 94V-2
- SCI R13-512 Series
| Type |
Push-button |
| Contact Configuration |
SPST |
| Max. Current |
3A |
| Action |
Off / on |
| Illumination Type |
N/A |
| Illumination Colour(s) |
Red |
