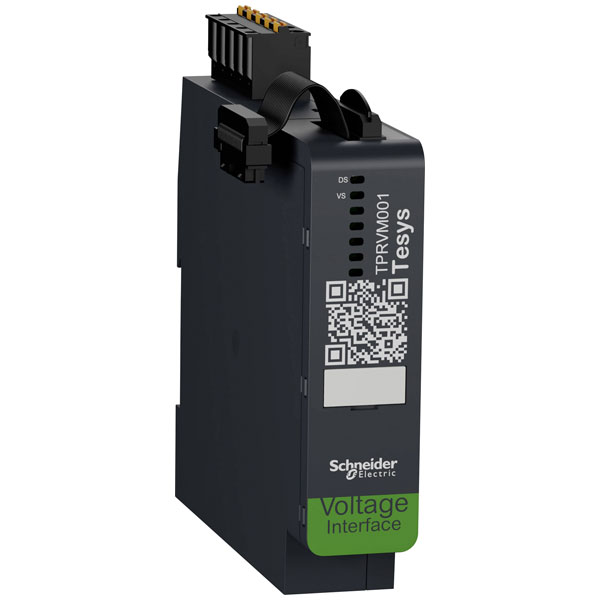

Schneider Electric TPRVM001 TeSys island interface module 24 V DC 80A

Schneider Electric's TeSys-island TPRVM001 interface module is a 24 V DC solution designed for seamless integration with programmable logic controllers. Featuring reliable communication capabilities, it aids in efficient data exchange within telemecanique systems. Typical applications include automation processes in industrial environments, enhancing operational efficiency and control.

Analogue inputs configurable	false
Analogue outputs configurable	N/A
Appendant operation agent (Ex ia)	false
Appendant operation agent (Ex ib)	false
Certified for UL hazardous location class I	false
Certified for UL hazardous location class II	false
Certified for UL hazardous location class III	false
Certified for UL hazardous location division 1	false
Certified for UL hazardous location division 2	false
Certified for UL hazardous location group A (acetylene)	false
Certified for UL hazardous location group B (hydrogen)	false
Certified for UL hazardous location group C (ethylene)	false
Certified for UL hazardous location group D (propane)	false
Certified for UL hazardous location group E (metal dusts)	false
Certified for UL hazardous location group F (carbonaceous dusts)	false
Certified for UL hazardous location group G (non-conductive dusts)	false
Current Consumption	10mA
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	114mm
Dim	(W x D) 25 mm x 114 mm
Display	No
Explosion safety category for dust	None
Explosion safety category for gas	None
Extensible	Yes
Fieldbus connection over separate bus coupler possible	true
Fitting type (details)	Top-hat rail
Front built-in possible	false
Height	118mm
Input signal, configurable	false
Input, current	false
Input, resistance thermometer	false
Input, resistor	false
Input, thermocouple	false
Input, voltage	true
IO link master	false
IP Rating	IP20
Max. ambient temperature	+60°C
Max. operating voltage	28.8V DC
Max. permanent current	8A
Min. ambient temperature	-10°C
Min. operating voltage	15V DC
Misc Attribute	TeSys-island
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Number of Analogue Inputs	3
Number of Analogue Outputs	0
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces other	2
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces wireless	0
Number of interfaces PROFINET	0
Output signal configurable	false
Output, current	false
Output, voltage	false
Performance level according to EN ISO 13849-1	None
Power Consumption	N/A
Rack-assembly possible	false
Radio standard Bluetooth	false
Radio standard WLAN 802.11	false
Resolution of the analogue inputs	13bit
Resolution of the analogue outputs	N/A
SIL according to IEC 61508	None
Suitable for rail mounting	true
Suitable for safety functions	false
Supply voltage AC 50 Hz	N/A
Supply voltage AC 60 Hz	N/A
Supply voltage DC	20.4 - 28.8V
Supporting protocol for ASI	false
Supporting protocol for AS-Interface Safety at Work	false
Supporting protocol for CAN	false
Supporting protocol for Data-Highway	false
Supporting protocol for DeviceNet	false
Supporting protocol for DeviceNet Safety	false
Supporting protocol for EtherCAT	false
Supporting protocol for EtherNet/IP	false
Supporting protocol for Foundation Fieldbus	false
Supporting protocol for INTERBUS	false
Supporting protocol for INTERBUS-Safety	false
Supporting protocol for KNX	false
Supporting protocol for LON	false
Supporting protocol for Modbus	false
Supporting protocol for other bus systems	true
Supporting protocol for PROFIBUS	false
Supporting protocol for PROFINET CBA	false
Supporting protocol for PROFINET IO	false
Supporting protocol for PROFIsafe	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for SERCOS	false
Supporting protocol for SUCONET	false
Supporting protocol for TCP/IP	false
System accessory	true
Type	Interface module
Type of electric connection	Plug-in connection
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	false
Width	25mm
