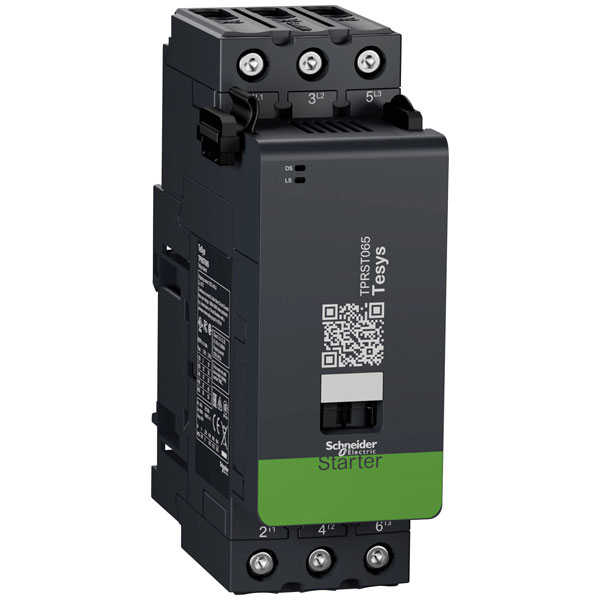

Schneider Electric TPRST065 TeSys island power base 24V DC 80A capacity

Schneider Electric's TeSys-island TPRST065 Power Base operates on 24 V DC, designed for efficient integration within programmable logic controllers. This power base is fundamental for automation systems, optimising control and energy distribution in industrial settings. Ideal for complex machine control, it enhances performance while supporting seamless connectivity in manufacturing processes.

Type	Power base
Appendant operation agent (Ex ia)	false
Appendant operation agent (Ex ib)	false
Certified for UL hazardous location class I	false
Certified for UL hazardous location class II	false
Certified for UL hazardous location class III	false
Certified for UL hazardous location division 1	false
Certified for UL hazardous location division 2	false
Certified for UL hazardous location group A (acetylene)	false
Certified for UL hazardous location group B (hydrogen)	false
Certified for UL hazardous location group C (ethylene)	false
Certified for UL hazardous location group D (propane)	false
Certified for UL hazardous location group E (metal dusts)	false
Certified for UL hazardous location group F (carbonaceous dusts)	false
Certified for UL hazardous location group G (non-conductive dusts)	false
Current Consumption	160mA
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	115mm
Dim	(W x D) 45 mm x 115 mm
Display	No
Explosion safety category for dust	None
Explosion safety category for gas	None
Extensible	Yes
Fieldbus connection over separate bus coupler possible	true
Fitting type (details)	Top-hat rail
Front built-in possible	false
Height	167mm
IO link master	false
IP Rating	IP20
Max. ambient temperature	+60°C
Max. permanent current	65A
Min. ambient temperature	-10°C
Misc Attribute	TeSys-island
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces other	2
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces wireless	0
Number of Inputs	1
Number of interfaces PROFINET	0
Number of motor outlets	1
Operating Voltage	24V DC
Performance level according to EN ISO 13849-1	None
Permitted voltage at input	0 - 690V
Permitted voltage at output	0 - 690V
Rack-assembly possible	false
Radio standard Bluetooth	false
Radio standard WLAN 802.11	false
Rated operation current of the motor	3.35 - 65A
Short-circuit protection, outputs available	false
SIL according to IEC 61508	None
Suitable for rail mounting	true
Suitable for safety functions	false
Supply voltage AC 50 Hz	N/A
Supply voltage AC 60 Hz	N/A
Supply voltage DC	20.4 - 28.8V
Supporting protocol for ASI	false
Supporting protocol for AS-Interface Safety at Work	false
Supporting protocol for CAN	false
Supporting protocol for Data-Highway	false
Supporting protocol for DeviceNet	false
Supporting protocol for DeviceNet Safety	false
Supporting protocol for EtherCAT	false
Supporting protocol for EtherNet/IP	false
Supporting protocol for Foundation Fieldbus	false
Supporting protocol for INTERBUS	false
Supporting protocol for INTERBUS-Safety	false
Supporting protocol for KNX	false
Supporting protocol for LON	false
Supporting protocol for Modbus	false
Supporting protocol for other bus systems	true
Supporting protocol for PROFIBUS	false
Supporting protocol for PROFINET CBA	false
Supporting protocol for PROFINET IO	false
Supporting protocol for PROFIsafe	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for SERCOS	false
Supporting protocol for SUCONET	false
Supporting protocol for TCP/IP	false
System accessory	true
Type of digital output	None
Type of electric connection	Plug-in connection
Type of electrical connection at the motor output	Screw connection
Type of output voltage	AC
Type of voltage (input voltage)	AC
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	false
Width	45mm
With brake output	false
With motor current parameter setting	false
With optical interface	false
With thermal motor protection	true
