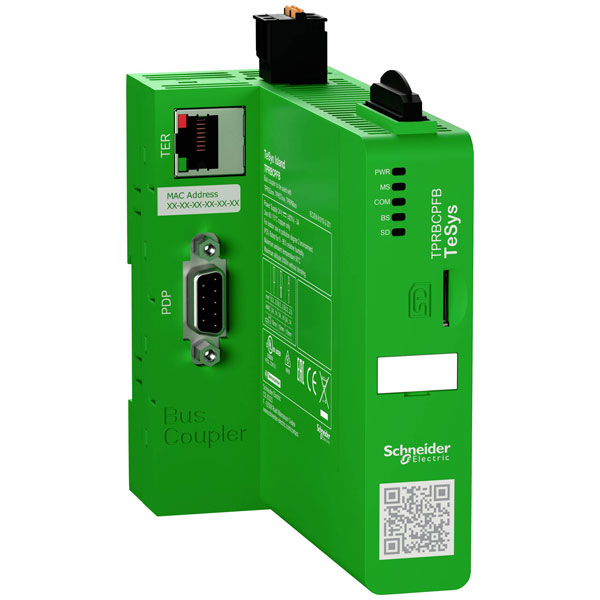

Schneider Electric TPRBCPFB TeSys-island Bus connector 24 V DC

Schneider Electric TPRBCPFB is a bus connector designed for 24 V DC applications, identified by the alternate description 2362635. This component facilitates the efficient interconnection within TeSys-island systems, providing a reliable means of linking power and communication pathways across modular components. Engineered for durability and compatibility, the TPRBCPFB is essential in complex automated environments where precision and consistency are paramount. Typical applications include industrial automation systems where coordinating multiple motor starters and controllers is required to achieve optimal operational efficiency. The use of this connector ensures seamless integration and uninterrupted performance in demanding engineering environments.

Type	TeSys-island
Appendant operation agent (Ex ia)	false
Appendant operation agent (Ex ib)	false
Certified for UL hazardous location class I	N/A
Certified for UL hazardous location class II	N/A
Certified for UL hazardous location class III	N/A
Certified for UL hazardous location division 1	N/A
Certified for UL hazardous location division 2	N/A
Certified for UL hazardous location group A (acetylene)	N/A
Certified for UL hazardous location group B (hydrogen)	N/A
Certified for UL hazardous location group C (ethylene)	N/A
Certified for UL hazardous location group D (propane)	N/A
Certified for UL hazardous location group E (metal dusts)	N/A
Certified for UL hazardous location group F (carbonaceous dusts)	N/A
Certified for UL hazardous location group G (non-conductive dusts)	N/A
Degree of protection (IP)	IP20
Depth	114mm
Dimensions	(W x D) 50 mm x 114 mm
Display	No
Explosion safety category for dust	None
Explosion safety category for gas	None
Extensible	Yes
Fieldbus connection over separate bus coupler possible	false
Front built-in possible	false
Height	118mm
IO link master	false
IP Rating	IP20
Max. ambient temperature	+60°C
Max. operating voltage	28.8V DC
Max. permanent current	3A
Min. ambient temperature	-10°C
Min. operating voltage	20.4V
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Number of HW-interfaces CAN	N/A
Number of HW-interfaces industrial Ethernet	N/A
Number of HW-interfaces other	N/A
Number of HW-interfaces parallel	N/A
Number of HW-interfaces RS-232	N/A
Number of HW-interfaces RS-422	N/A
Number of HW-interfaces RS-485	N/A
Number of HW-interfaces serial TTY	N/A
Number of HW-interfaces USB	N/A
Number of HW-interfaces wireless	N/A
Number of interfaces PROFINET	N/A
Operating Voltage	24V DC
Performance level according to EN ISO 13849-1	None
Product Type	Bus connector
Rack-assembly possible	false
Radio standard Bluetooth	false
Radio standard eGPRS	false
Radio standard LTE	false
Radio standard WLAN 802.11	false
SIL according to IEC 61508	None
Suitable for rail mounting	true
Suitable for safety functions	false
Supply voltage AC 50 Hz	N/A
Supply voltage AC 60 Hz	N/A
Supply voltage DC	20.4 - 28.8V
Supporting protocol for ASI	false
Supporting protocol for AS-Interface Safety at Work	false
Supporting protocol for CAN	false
Supporting protocol for Data-Highway	false
Supporting protocol for DeviceNet	false
Supporting protocol for DeviceNet Safety	false
Supporting protocol for EtherCAT	N/A
Supporting protocol for EtherNet/IP	false
Supporting protocol for Foundation Fieldbus	false
Supporting protocol for INTERBUS	false
Supporting protocol for INTERBUS-Safety	false
Supporting protocol for KNX	false
Supporting protocol for LON	false
Supporting protocol for Modbus	false
Supporting protocol for other bus systems	true
Supporting protocol for PROFIBUS	true
Supporting protocol for PROFINET CBA	false
Supporting protocol for PROFINET IO	false
Supporting protocol for PROFIsafe	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for SERCOS	false
Supporting protocol for SUCONET	false
Supporting protocol for TCP/IP	false
System accessory	true
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	false
Width	50mm
With potential separation	true
