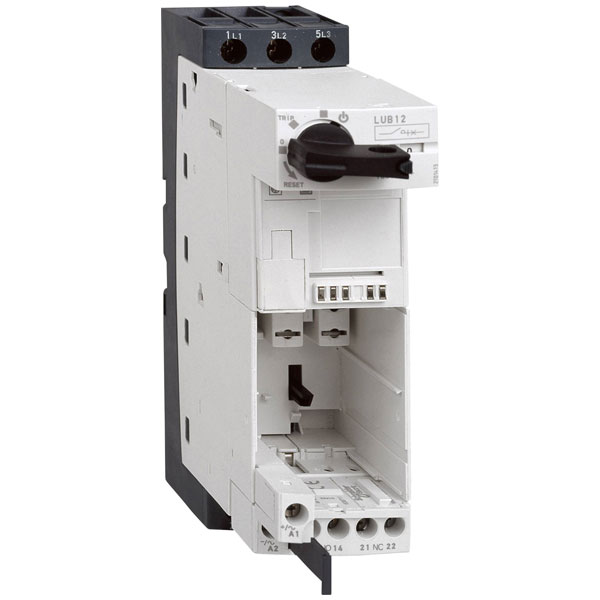

Schneider Electric LUB12 TeSys U motor starter compact and modular

Schneider Electric's LUB12 is a robust direct motor starter designed for reliable motor control. Featuring soft start capabilities, it ensures smooth operation and protection of machinery. Typically used in industrial applications, it enhances equipment longevity and efficiency.

Type	Direct motor starter
Ambient temperature, upper operating limit	70°C
Coordination class according to IEC 60947-4-3	Class 2
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	126mm
Dim	(W x H x D) 45 x 145 x 126 mm
External reset possible	false
Height	145mm
IP Rating	IP20
Kind of motor starter	Direct starter
No. of Auxiliary Contacts as Normally Closed Contact	1
No. of Auxiliary Contacts as Normally Open Contact	1
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of command positions	3
Number of indicator lights	0
Overload release current setting	N/A
Power Consumption	N/A
Rail mounting possible	Yes
Rated conditional short-circuit current, type 1, 480 Y/277 V	10000A
Rated conditional short-circuit current, type 1, 600 Y/347 V	4000A
Rated conditional short-circuit current, type 2, 230 V	50000A
Rated conditional short-circuit current, type 2, 400 V	50000A
Rated control supply voltage AC 50 Hz	24 - 240V
Rated control supply voltage AC 60 Hz	24 - 240V
Rated Control Supply Voltage at AC 50 Hz	24V - 240V
Rated Control Supply Voltage at AC 60 Hz	24V - 240V
Rated Control Supply Voltage at DC	24V - 220V
Rated control supply voltage DC	24 - 220V
Rated operation current at AC-3, 400 V	12A
Rated operation current Ie	12A
Rated operation power at AC-3, 230 V, 3-phase	3kW
Rated operation power at AC-3, 400 V	5.5kW
Rated power, 460 V, 60 Hz, 3-phase	5.5kW
Rated power, 575 V, 60 Hz, 3-phase	5.5kW
Release class	N/A
Suitable for emergency stop	false
Suitable for rail mounting	true
Supporting protocol for ASI	false
Supporting protocol for AS-Interface Safety at Work	false
Supporting protocol for CAN	false
Supporting protocol for Data-Highway	false
Supporting protocol for DeviceNet	false
Supporting protocol for DeviceNet Safety	false
Supporting protocol for EtherNet/IP	false
Supporting protocol for Foundation Fieldbus	false
Supporting protocol for INTERBUS	false
Supporting protocol for INTERBUS-Safety	false
Supporting protocol for LON	false
Supporting protocol for Modbus	false
Supporting protocol for other bus systems	false
Supporting protocol for PROFIBUS	false
Supporting protocol for PROFINET CBA	false
Supporting protocol for PROFINET IO	false
Supporting protocol for PROFIsafe	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for SERCOS	false
Supporting protocol for SUCONET	false
Supporting protocol for TCP/IP	false
Temperature compensated overload protection	N/A
Type of Electrical Connection - Main Circuit	Screw connection
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Type of motor starter	Direct online starter (DOL)
Voltage type for actuating	AC/DC
Width	45mm
With fuse	false
With short-circuit release	true
With transformer	false
