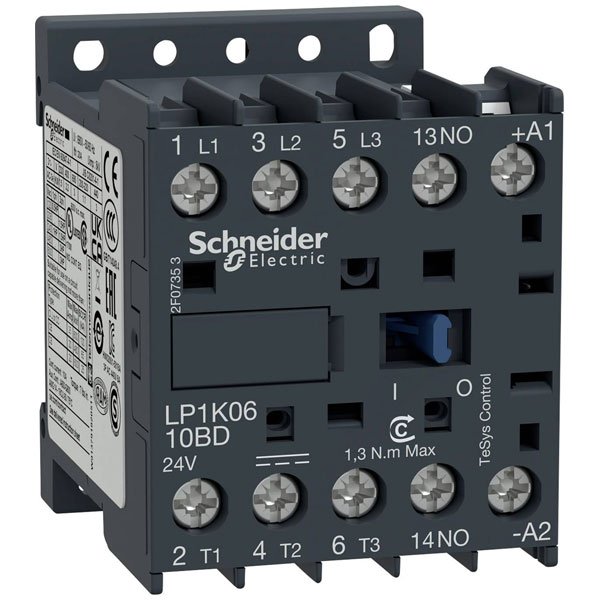

Schneider Electric LP1K0610BD LK-POTH Contactor 100KA 1pc

The Schneider Electric LK-POTH 100KA-1-ST electrical contactor is a high-quality device known for its durable construction and reliable performance. This contactor is designed for controls and switching operations in various industrial applications. Suitable for managing electrical loads, it ensures efficient and safe operation in both small and large-scale settings.

Type	Electrical contactor
Coil Voltage	24V DC
Depth	57mm
Height	58mm
Misc Attribute	LK-POTH 100KA-1-ST
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Rated control supply voltage AC 50 Hz	N/A
Rated control supply voltage AC 60 Hz	N/A
Rated control supply voltage DC	24 - 24V
Rated operation current Ie at AC-1, 400 V	20A
Rated operation current Ie at AC-3, 400 V	6A
Rated operation current Ie at AC-4, 400 V	4A
Rated operation power at AC-3, 400 V	2.2kW
Rated operation power at AC-4, 400 V	1.5kW
Rated operation power NEMA	N/A
Suitable for distribution board	false
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	0.22
Width	45mm
