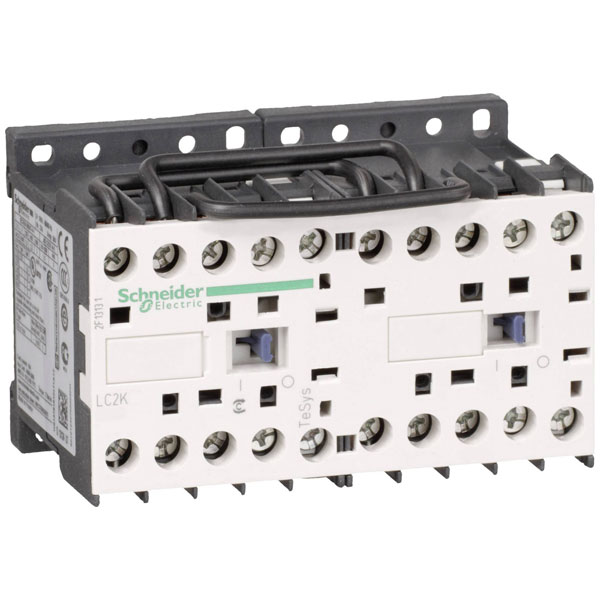

Schneider Electric LC2K0601P7 reversing Contactor combo 1pc efficient control

The Schneider Electric LC2K0601P7 is a reversing contactor combo designed for controlling three-phase motors. It features durable construction, ensuring reliable performance in reversing motor applications. Ideal for industrial automation and machinery, this electrical contactor supports smooth motor direction changes.

Type	Reversing contactor combo
Coil Voltage	230V AC
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
Depth	57mm
Function	Reversing contactor
Height	58mm
Number of auxiliary contacts as change-over contact	N/A
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	0
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	440 - 440V
Operating voltage AC 60 Hz	440 - 440V
Operating voltage DC	N/A
Rated control supply voltage AC 50 Hz	230 - 230V
Rated control supply voltage AC 60 Hz	230 - 230V
Rated control supply voltage DC	N/A
Rated operation current Ie at AC-1, 400 V	N/A
Rated operation current Ie at AC-3, 400 V	6A
Rated operation power at AC-3, 400 V	2.2kW
Rated operation power NEMA	2.24kW
Suitable for rail mounting	false
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Voltage type (operating voltage)	AC
Voltage type for actuating	AC
Width	90mm
