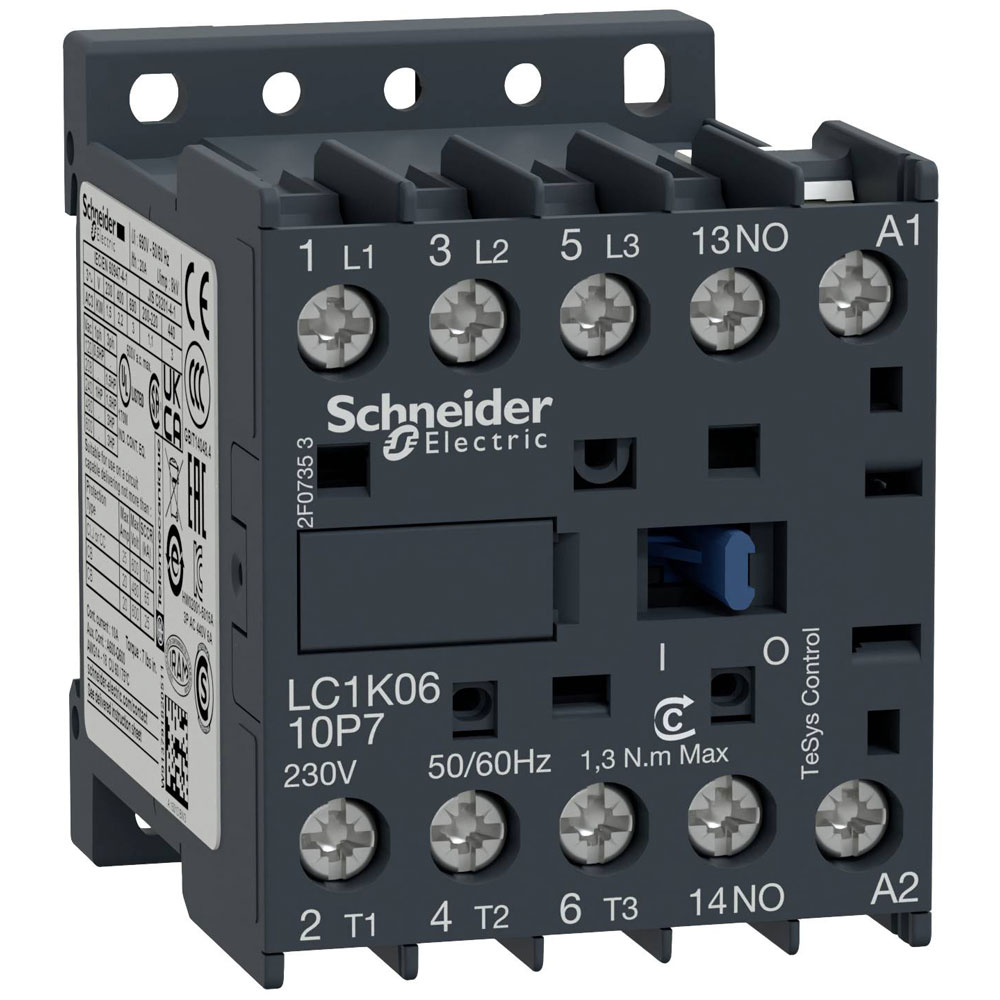

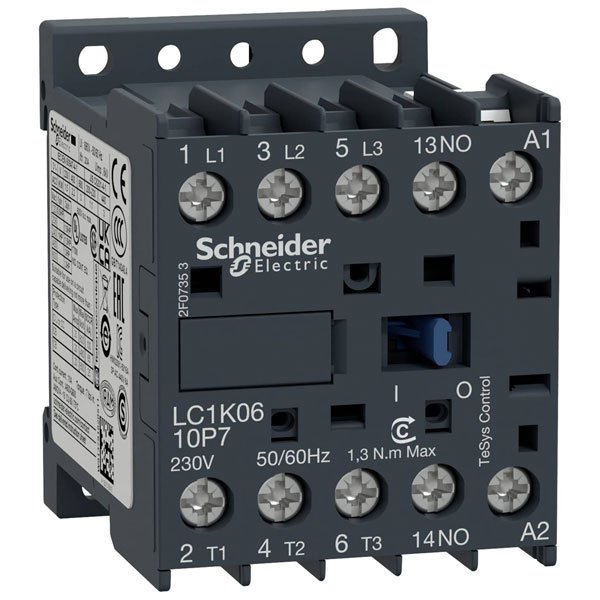

The Schneider Electric LC1K0610P7 is a robust electrical contactor designed for control and power switching in various applications. It is suitable for industrial environments where reliable control of electric motors and other devices is essential. This compact contactor is typically used in motor control panels and other machinery requiring dependable switching operations.
| Type |
Contactor |
| Coil Voltage |
230V AC |
| Connection |
Screw terminal |
| Contact Type |
1 maker |
| Depth |
57mm |
| Dimensions |
(W x H x D) 45 x 58 x 57 mm |
| Height |
58mm |
| IP Rating |
IP2X |
| Maximum Temperature |
+50°C |
| Min. temperature |
-25°C |
| Mounting Style |
DIN rail |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
0 |
| Number of normally open contacts as main contact |
3 |
| Number of Poles |
3 |
| Operating voltage AC 50 Hz |
440 - 440V |
| Operating voltage AC 60 Hz |
440 - 440V |
| Rated control supply voltage AC 50 Hz |
230 - 230V |
| Rated control supply voltage AC 60 Hz |
230 - 230V |
| Rated control supply voltage DC |
N/A |
| Rated operation current Ie at AC-1, 400 V |
20A |
| Rated operation current Ie at AC-3, 400 V |
6A |
| Rated operation current Ie at AC-4, 400 V |
4A |
| Rated operation power at AC-3, 400 V |
2.2kW |
| Rated operation power at AC-4, 400 V |
1.5kW |
| Rated operation power NEMA |
N/A |
| Suitable for distribution board |
false |
| Terminals |
3-pin |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
AC |
| Width |
45mm |
