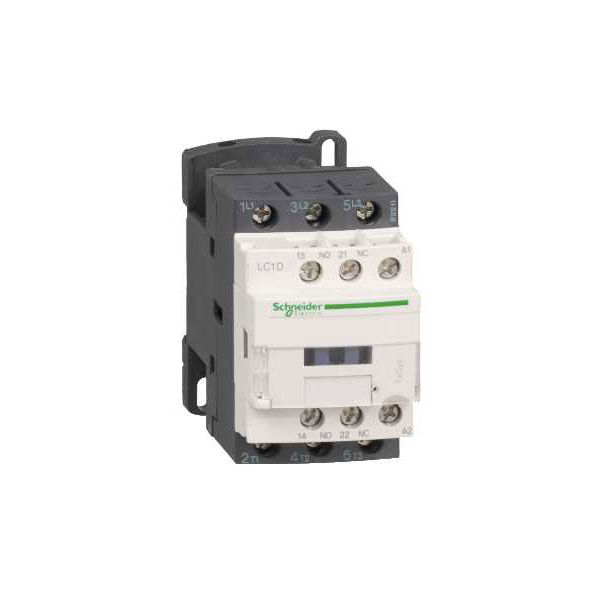

From the TeSys LC1D series, a 3-pole (3 NO) category AC-1 / AC-3 contactor rated at 32A (AC-3) / 50A (AC-1) with a 230V AC coil.
- Control circuit voltage: 230V AC 50/60Hz
- Rated breaking capacity: 250A at 440V for power circuit conforming to IEC 60947
- Product certifications: BV, CCC, CSA, DNV, GL, GOST, RINA, UL
- Utilisation category: AC-1 & AC-3
- Rated operational current: 50A (<= 60°C) at <= 440V AC AC-1 for power circuit
- Rated operational current: 32A (<= 60°C) at <= 440V AC AC-3 for power circuit
- Operating time: 4 to 19ms opening
- Operating time: 12 to 22ms closing
- Mechanical durability: 15mcycles
- Connections: screw clamp terminals
- Standards: UL 508, CSA C22.2 no 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1
- Manufacturer's type LC1D32P7
| Type |
Contactor |
| Contact Current Rating |
32A |
| Contact Voltage Rating |
440V |
| Depth |
92mm |
| Height |
85mm |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
0 |
| Number of normally open contacts as main contact |
3 |
| Number of Poles |
3 |
| Operating voltage AC 50 Hz |
440 - 440V |
| Operating voltage AC 60 Hz |
440 - 440V |
| Power Rating |
9kW |
| Rated control supply voltage AC 50 Hz |
230 - 230V |
| Rated control supply voltage AC 60 Hz |
230 - 230V |
| Rated control supply voltage DC |
N/A |
| Rated operation current Ie at AC-1, 400 V |
50A |
| Rated operation current Ie at AC-3, 400 V |
32A |
| Rated operation current Ie at AC-4, 400 V |
N/A |
| Rated operation power at AC-3, 400 V |
15kW |
| Rated operation power at AC-4, 400 V |
N/A |
| Rated operation power NEMA |
N/A |
| Suitable for distribution board |
false |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
AC |
| Width |
45mm |
