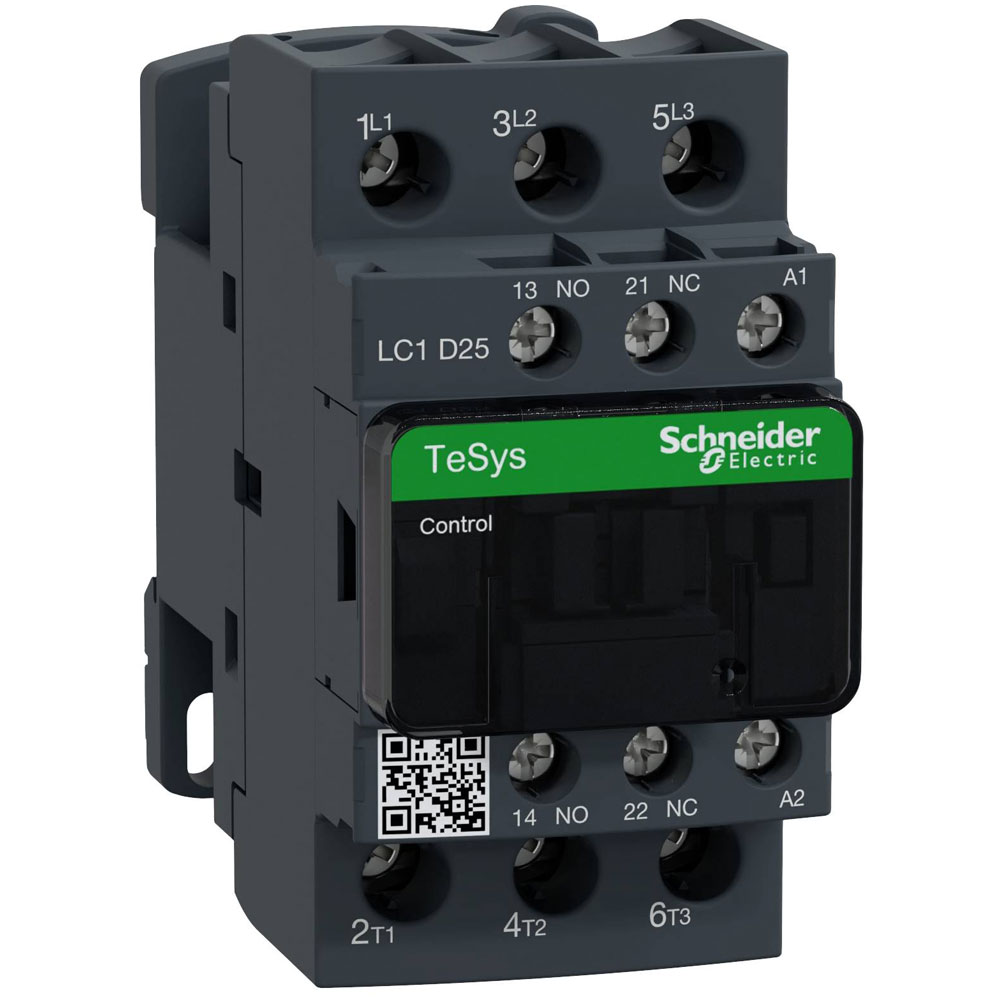

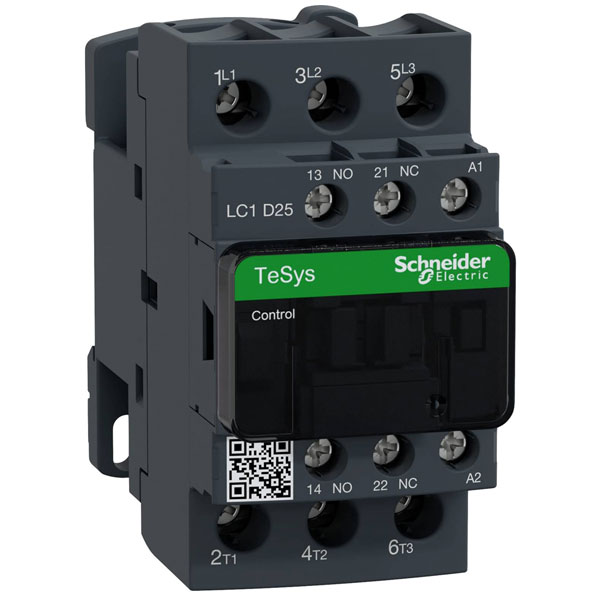

Schneider Electric LC1D25F7 Contactor 3-pole 25A 110V 50/60Hz 1S/1OE

Schneider Electric
Order Code:

06-5915

Brand: Schneider Electric MPN: LC1D25F7 EAN-13: 3389110349719
Qty Was Unit Price (Ex VAT)
1+ £53.14 £52.78
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

Schneider Electric LC1D25F7 electrical contactor is designed for controlling and switching electrical circuits. It is typically used in motor control applications, providing reliable performance for starting and stopping motors. This contactor ensures efficient energy management in industrial and commercial settings.
Type Electrical contactor
Coil Voltage 110 V AC
Contact Current Rating 25A
Depth 92mm
Height 85mm
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as normally open contact 1
Number of normally closed contacts as main contact 0
Number of normally open contacts as main contact 3
Number of Poles 3
Operating voltage AC 50 Hz 440 - 440V
Operating voltage AC 60 Hz 440 - 440V
Rated control supply voltage AC 50 Hz 110 - 110V
Rated control supply voltage AC 60 Hz 110 - 110V
Rated control supply voltage DC N/A
Rated operation current Ie at AC-1, 400 V 40A
Rated operation current Ie at AC-3, 400 V 25A
Rated operation current Ie at AC-4, 400 V N/A
Rated operation power at AC-3, 400 V 11kW
Rated operation power at AC-4, 400 V N/A
Rated operation power NEMA N/A
Suitable for distribution board false
Type of electrical connection of main circuit Screw connection
Voltage type for actuating AC
Width 45mm
