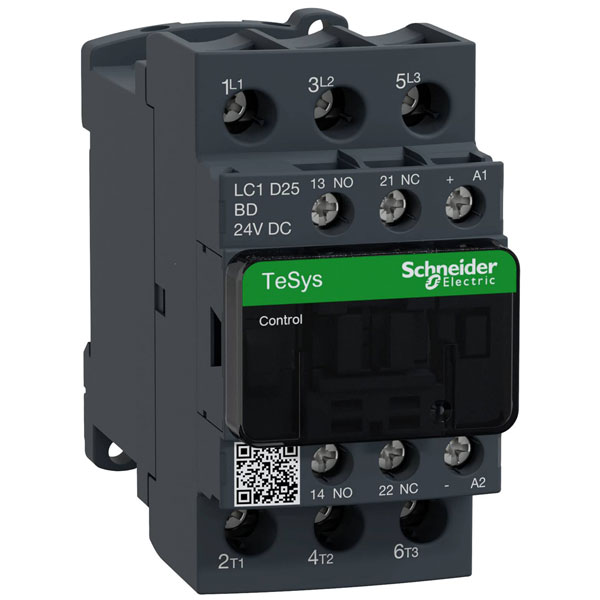

Schneider Electric LC1D25BD TeSys Contactor 1 maker 1 breaker 1pc

Schneider Electric manufactures the LC1D25BD contactor known for its reliable operation and robust construction. This electrical contactor features one maker and one breaker, making it suitable for controlling electric circuits. Common applications include motor control, heating, and lighting systems.

Type	Contactor
Coil Voltage	24V DC
Connection	Screw terminal
Depth	101mm
Dimensions	(W x H x D) 45 x 85 x 101 mm
Height	85mm
IP Rating	IP20
Max. temperature	+50°C
Min. temperature	-25°C
Mounting Style	DIN rail
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Number of Poles	3
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Rated control supply voltage AC 50 Hz	N/A
Rated control supply voltage AC 60 Hz	N/A
Rated control supply voltage DC	24 - 24V
Rated operation current Ie at AC-1, 400 V	40A
Rated operation current Ie at AC-3, 400 V	25A
Rated operation current Ie at AC-4, 400 V	N/A
Rated operation power at AC-3, 400 V	11kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	N/A
Suitable for distribution board	false
Terminals	3-pin
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Width	45mm
