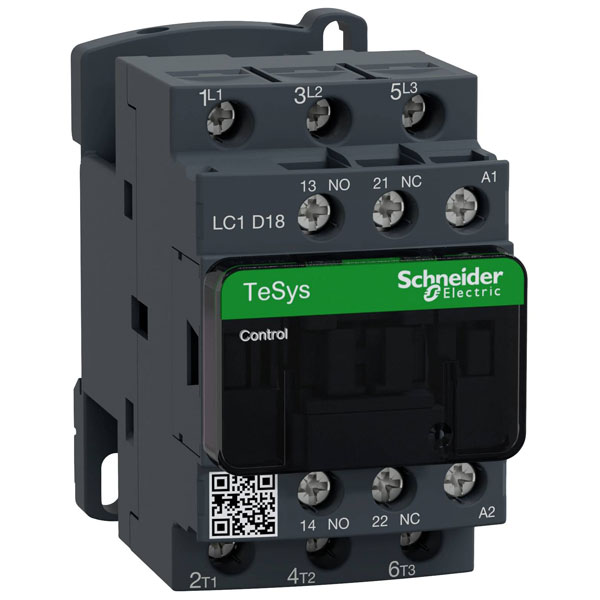

Schneider Electric LC1D18P7 TeSys Contactor 1 maker 1 breaker 1 piece

The Schneider Electric LC1D18P7 is an electrical contactor designed for controlling electric motors and other loads. It features a durable design with one make and one break mechanism for reliable switching. Typically used in industrial and commercial settings, it ensures efficient power management and control.

Type	Contactor
Coil Voltage	230V AC
Connection	Screw terminal
Depth	86mm
Dimensions	(W x H x D) 45 x 77 x 86 mm
Height	77mm
IP Rating	IP2X
Max. temperature	+60°C
Min. temperature	-5°C
Mounting Style	DIN rail
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Number of Poles	3
Operating voltage AC 50 Hz	440 - 440V
Operating voltage AC 60 Hz	440 - 440V
Rated control supply voltage AC 50 Hz	230 - 230V
Rated control supply voltage AC 60 Hz	230 - 230V
Rated control supply voltage DC	N/A
Rated operation current Ie at AC-1, 400 V	32A
Rated operation current Ie at AC-3, 400 V	18A
Rated operation current Ie at AC-4, 400 V	N/A
Rated operation power at AC-3, 400 V	7.5kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	N/A
Suitable for distribution board	false
Terminals	3-pin
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Width	45mm
