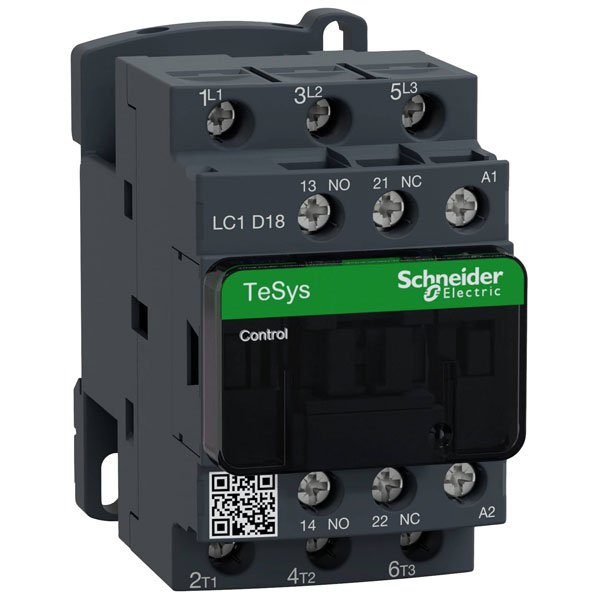

Schneider Electric LC1D18B7 TeSys D Contactor 1pc high-performance unit

The Schneider Electric LC1D18B7 is an electrical contactor known for its reliability and efficient performance. It is typically used for controlling electric motors and other power circuits. This contactor is suitable for a wide range of industrial and commercial applications.

Type	Electrical contactor
Coil Voltage	24V AC
Depth	86mm
Height	77mm
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	440 - 440V
Operating voltage AC 60 Hz	440 - 440V
Rated control supply voltage AC 50 Hz	24 - 24V
Rated control supply voltage AC 60 Hz	24 - 24V
Rated control supply voltage DC	N/A
Rated operation current Ie at AC-1, 400 V	32A
Rated operation current Ie at AC-3, 400 V	18A
Rated operation current Ie at AC-4, 400 V	N/A
Rated operation power at AC-3, 400 V	7.5kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	N/A
Suitable for distribution board	false
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Width	45mm
