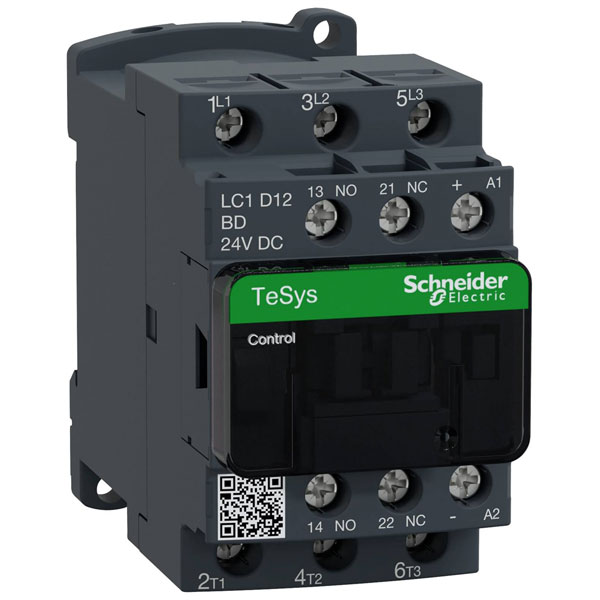

Schneider Electric LC1D12BD Contactor ; 1 maker 1 breaker 1pc

The Schneider Electric LC1D12BD is an electrical contactor featuring one maker and one breaker, ideal for motor control applications. Designed with robust performance in mind, it ensures reliable starting and stopping of motors. Frequently used in industrial and commercial electrical systems, this contactor is suitable for automation control and circuit management.

Type	Contactor
Coil Voltage	24V DC
Connection	Screw terminal
Contact Current Rating	12A
Depth	95mm
Dimensions	(W x H x D) 45 x 77 x 95 mm
Height	77mm
IP Rating	IP2X
Max. temperature	+60°C
Min. temperature	-5°C
Mounting Style	DIN rail
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Number of Poles	3
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Rated control supply voltage AC 50 Hz	N/A
Rated control supply voltage AC 60 Hz	N/A
Rated control supply voltage DC	24 - 24V
Rated operation current Ie at AC-1, 400 V	25A
Rated operation current Ie at AC-3, 400 V	12A
Rated operation current Ie at AC-4, 400 V	N/A
Rated operation power at AC-3, 400 V	5.5kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	N/A
Suitable for distribution board	false
Terminals	3-pin
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Width	45mm
