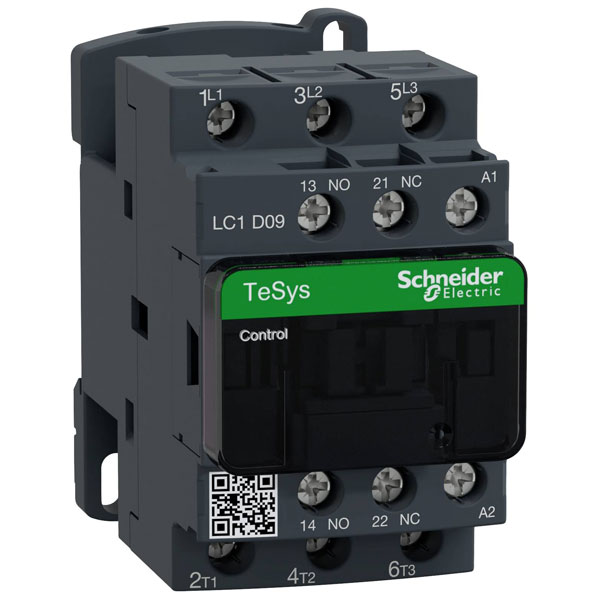

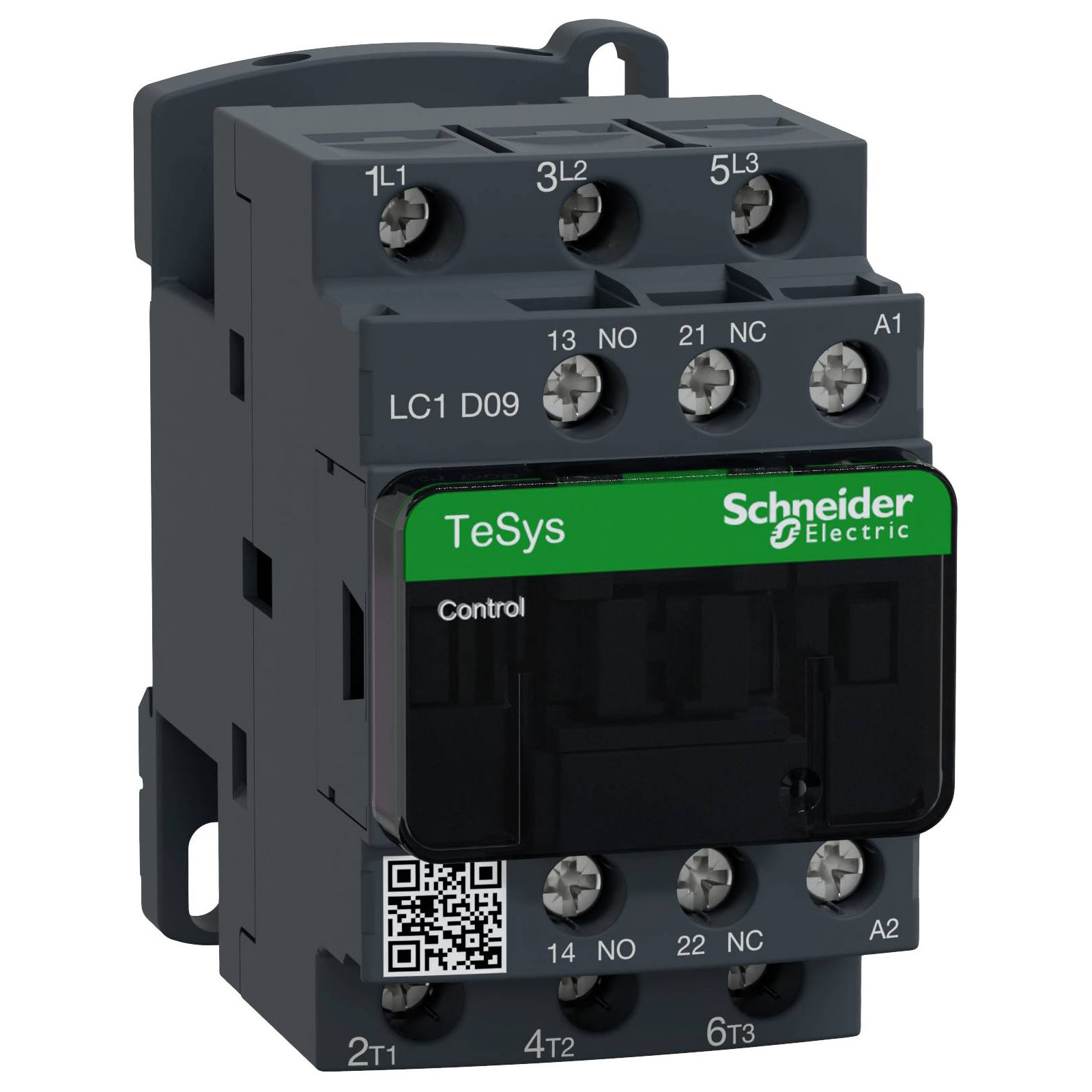

Schneider Electric LC1D09P7 Contactor 1 maker 1 breaker 1pc(s)

The Schneider Electric LC1D09P7 contactor is an electrical device used for controlling circuits, typically in automation and motor control applications. It features 1 maker and 1 breaker, ensuring reliable performance. This contactor is ideal for integration into control panels and industrial equipment.

Type	Contactor
Coil Voltage	230V AC
Connection	Screw terminal
Contact Current Rating	9A
Depth	86mm
Dimensions	(W x H x D) 45 x 77 x 86 mm
Height	77mm
IP Rating	IP2X
Maximum Temperature	+60°C
Min. temperature	-5°C
Mounting Style	DIN rail
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	440 - 440V
Operating voltage AC 60 Hz	440 - 440V
Rated control supply voltage AC 50 Hz	230 - 230V
Rated control supply voltage AC 60 Hz	230 - 230V
Rated control supply voltage DC	N/A
Rated operation current Ie at AC-1, 400 V	25A
Rated operation current Ie at AC-3, 400 V	9A
Rated operation current Ie at AC-4, 400 V	N/A
Rated operation power at AC-3, 400 V	4kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	N/A
Suitable for distribution board	false
Terminals	Screw terminal
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Width	45mm
