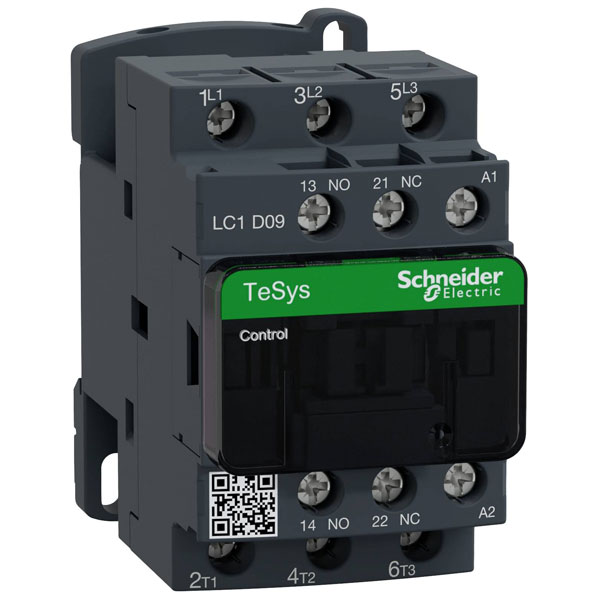

The Schneider Electric LC1D09F7 is an electrical contactor designed for reliable switching and control of electrical circuits. It features a compact design and is suitable for use in automation and control applications, including motor control and lighting systems. This durable device ensures efficient performance in industrial and commercial environments.
| Type |
Electrical contactor |
| Coil Voltage |
110 V AC |
| Contact Current Rating |
9A |
| Depth |
86mm |
| Height |
77mm |
| Modular Version |
No |
| No. of Auxiliary Contacts as Normally Closed Contact |
1 |
| No. of Auxiliary Contacts as Normally Open Contact |
1 |
| No. of NO Main Contacts |
3 |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
0 |
| Number of normally open contacts as main contact |
3 |
| Operating voltage AC 50 Hz |
440 - 440V |
| Operating voltage AC 60 Hz |
440 - 440V |
| Rated control supply voltage AC 50 Hz |
110 - 110V |
| Rated control supply voltage AC 60 Hz |
110 - 110V |
| Rated Control Supply Voltage at AC 50 Hz |
110V - 110V |
| Rated Control Supply Voltage at AC 60 Hz |
110V - 110V |
| Rated control supply voltage DC |
N/A |
| Rated operation current Ie at AC-1, 400 V |
25A |
| Rated operation current Ie at AC-3, 400 V |
9A |
| Rated operation current Ie at AC-4, 400 V |
N/A |
| Rated operation power at AC-3, 400 V |
4kW |
| Rated operation power at AC-4, 400 V |
N/A |
| Rated operation power NEMA |
N/A |
| Suitable for distribution board |
false |
| Type of Electrical Connection - Main Circuit |
Screw connection |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
AC |
| Width |
45mm |
