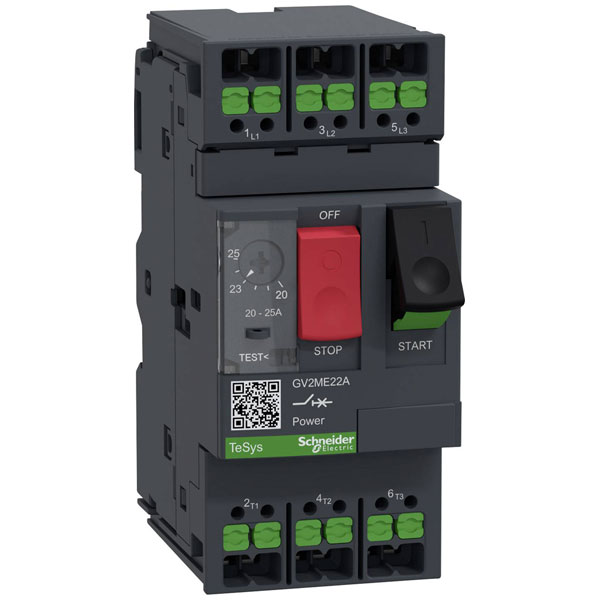

Schneider Electric GV2ME22A TeSys Overload relay Circuit Breakers

Schneider Electric GV2ME22A is a robust overload relay designed for integration with electrical contactors, forming an essential part of circuit protection systems. This circuit breaker model is engineered to prevent overcurrent faults in electrical circuits by disconnecting the power supply during overload conditions, thus ensuring enhanced safety and operational reliability. Favoured in industrial environments, the GV2ME22A offers precise motor control and protection, making it suitable for applications such as motor starters and control panels. The performance and reliability of this overload relay make it an indispensable component in both commercial and manufacturing settings where efficient energy management is critical.

Type	GV2ME22A
Adjustment range undelayed short-circuit release	327-327A
Colour	Multicolour
Connection	Snap-in
Content	1
Depth	78.5mm
Device construction	Complete device in housing
Dimensions	(W x H x D) 45 x 101 x 78.5 mm
Height	101mm
IP Protection	IP20
IP Rating	IP20
No. of pins	3-pin
Number of Poles	3
Overload release current setting	20-25A
Phase failure sensitive	TRUE
Power loss	2.5W
Product Type	Overload relay
Rated operating voltage	230-690V
Rated operation power at AC-3, 230 V	5.5kW
Rated operation power at AC-3, 400 V	11kW
Rated permanent current Iu	25A
Rated short-circuit breaking capacity Icu at 400 V, AC	15kA
Switch off technique	Thermomagnetic
Type of control element	Push button
Type of electrical connection of main circuit	Other
Width	45mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
With thermal overload protection	TRUE
