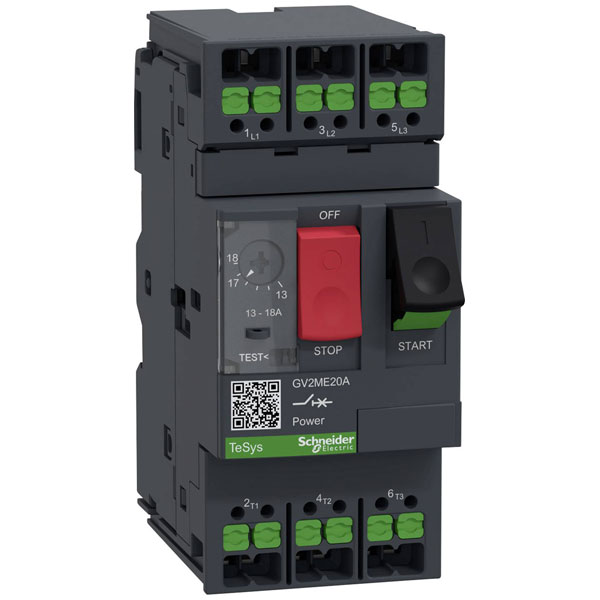

Schneider Electric GV2ME20A Overload relay Circuit Breakers

Schneider Electric GV2ME20A is a robust overload relay integrated with circuit breaker functionalities designed to protect electrical motors by preventing conditions such as overheating and electrical overload. This component, from the renowned GV2 series, is engineered to work effectively with contactors, making it versatile for application in various industrial sectors where reliable motor control and protection are essential, including manufacturing and automation environments. The GV2ME20A model is meticulously crafted to ensure compatibility with auxiliary contactors, providing enhanced modularity and adaptability in circuit configuration. The precision of its design ensures that it can be deployed in both standard and demanding operational settings, making it an indispensable part of electrical management solutions.

Type	Motor Ptotection Circuit-Breaker
Number of Poles	3
Rated operation power at AC-3, 230 V	4kW
Rated operation power at AC-3, 400 V	7.5kW
Adjustment range undelayed short-circuit release	223-223A
Colour	Multicolour
Connection	Snap-in
Content	1
Degree of protection (IP)	IP20
Depth	78.5mm
Device construction	Complete device in housing
Dimensions	(W x H x D) 45 x 101 x 78.5 mm
Height	101mm
IP Protection	IP20
IP Rating	IP20
No. of pins	3-pin
Overload release current setting	13-18A
Phase failure sensitive	TRUE
Power loss	2.5W
Rated operating voltage	230-690V
Rated permanent current Iu	18A
Rated short-circuit breaking capacity Icu at 400 V, AC	15kA
Switch off technique	Thermomagnetic
Type of control element	Push button
Type of electrical connection of main circuit	Other
Width	45mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
With thermal overload protection	TRUE
