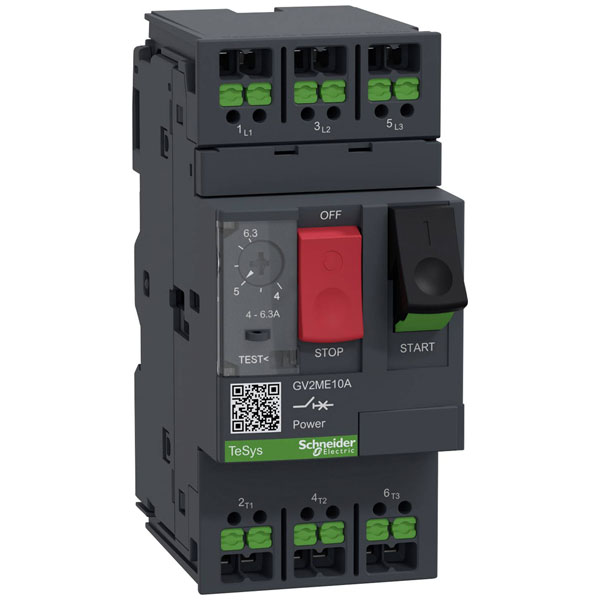

Schneider Electric GV2ME10A Overload relay 4.6-6.3A Circuit Breakers

Schneider Electric GV2ME10A is a meticulously engineered overload relay designed for precise integration with contactors in electrical systems. This circuit breaker allows for an adjustment range of 4.6 to 6.3 amperes, providing reliable protection for motors by preventing overload conditions. It is commonly utilised in industrial and commercial applications where safeguarding electrical equipment from overcurrent conditions is crucial. By facilitating coordination with auxiliary contactors, the GV2ME10A ensures seamless operation within control panels and motor control centres, thereby enhancing system safety and efficiency. Its robust design and compatibility with Schneider Electric components make it a preferred choice for engineers seeking reliability in circuit protection.

Type	Motor Ptotection Circuit-Breaker
Number of Poles	3
Rated operation power at AC-3, 230 V	1.1kW
Rated operation power at AC-3, 400 V	2.2kW
Adjustment range (amperage)	4.6 - 6.3 A
Adjustment range undelayed short-circuit release	78-78A
Amperage adjustment range (max.)	6.3A
Amperage adjustment range (min.)	4.6A
Colour	Multicolour
Connection	Snap-in
Content	1
Degree of protection (IP)	IP20
Depth	78.5mm
Device construction	Complete device in housing
Dimensions	(W x H x D) 45 x 101 x 78.5 mm
Height	101mm
IP Protection	IP20
IP Rating	IP20
No. of pins	3-pin
Overload release current setting	4-6.3A
Phase failure sensitive	TRUE
Power loss	2.5W
Rated operating voltage	230-690V
Rated permanent current Iu	6.3A
Rated short-circuit breaking capacity Icu at 400 V, AC	100kA
Switch off technique	Thermomagnetic
Type of control element	Push button
Type of electrical connection of main circuit	Other
Width	45mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
With thermal overload protection	TRUE
