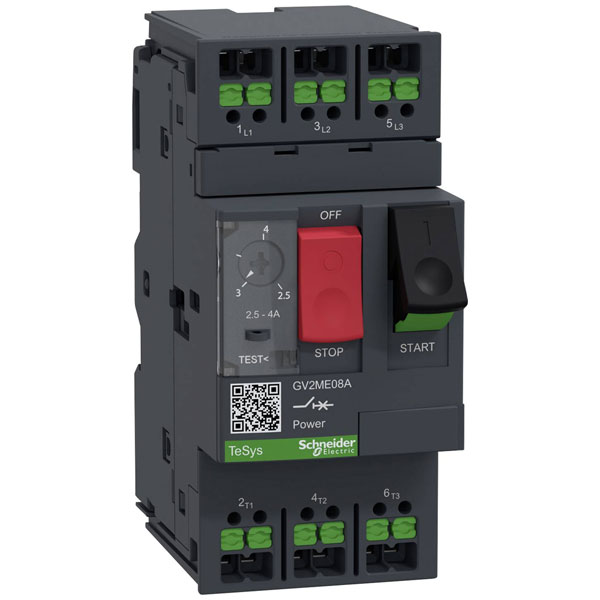

Schneider Electric GV2ME08A Overload relay 2.5-4 A Circuit Breakers

Schneider Electric GV2ME08A is a compact and reliable overload relay designed for use with contactors in electrical systems. This circuit breaker features an adjustable amperage range from 2.5 to 4 A, providing precise control for the protection of electrical circuits against overloads. Engineered for integration with auxiliary contactors, it is commonly utilised in motor protection applications, ensuring the safety and efficiency of electrical installations. The GV2ME08A is particularly suitable for control panels and motor control centres where space and component compatibility are critical considerations. Its robust design and flexibility make it an essential component in diverse industrial and commercial environments.

Type	GV2ME08A
Adjustment range (amperage)	2.5 - 4 A
Adjustment range undelayed short-circuit release	51-51A
Amperage adjustment range (max.)	4A
Amperage adjustment range (min.)	2.5A
Colour	Multicolour
Connection	Snap-in
Content	1
Depth	78.5mm
Device construction	Complete device in housing
Dimensions	(W x H x D) 45 x 101 x 78.5 mm
Height	101mm
IP Protection	IP20
IP Rating	IP20
No. of pins	3-pin
Number of Poles	3
Overload release current setting	2.5-4A
Phase failure sensitive	TRUE
Power loss	2.5W
Product Type	Overload relay
Rated operating voltage	230-690V
Rated operation power at AC-3, 230 V	0.75kW
Rated operation power at AC-3, 400 V	1.5kW
Rated permanent current Iu	4A
Rated short-circuit breaking capacity Icu at 400 V, AC	100kA
Switch off technique	Thermomagnetic
Type of control element	Push button
Type of electrical connection of main circuit	Other
Width	45mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
With thermal overload protection	TRUE
