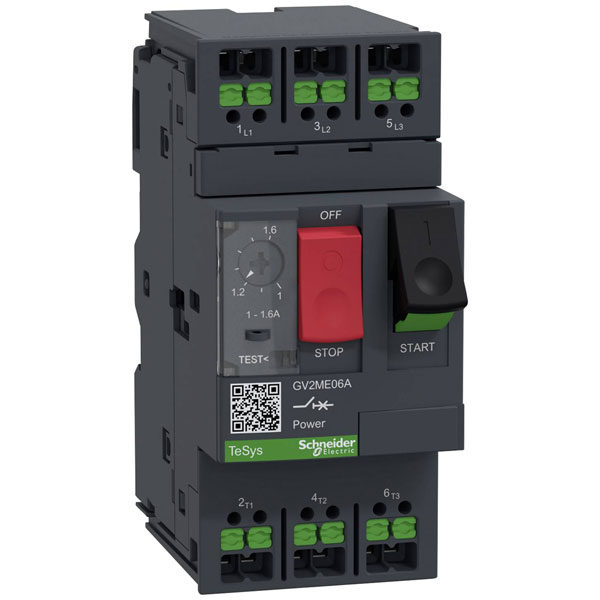

Schneider Electric GV2ME06A Overload relay 1.0-1.6 A Circuit Breaker

Schneider Electric's GV2ME06A is an overload relay designed for integration with electrical contactors. This circuit breaker offers an adjustable amperage range of 1.0 to 1.6 A, providing precise control and protection for low-power circuits. Its robust design ensures reliable performance in overload protection, making it an essential component for safeguarding electric motors and other devices from conditions that could lead to overheating. Common applications include use within control panels and automated systems where maintaining continuous operation is critical. The GV2ME06A serves as a pivotal element in the protection of electrical networks, contributing to both the safety and efficiency of various engineering projects.

Type	GV2ME06A
Adjustment range (amperage)	1 - 1.6 A
Adjustment range undelayed short-circuit release	22.5-22.5A
Amperage adjustment range (max.)	1.6A
Amperage adjustment range (min.)	1A
Colour	Multicolour
Connection	Snap-in
Content	1
Depth	78.5mm
Device construction	Complete device in housing
Dimensions	(W x H x D) 45 x 101 x 78.5 mm
Height	101mm
IP Protection	IP20
IP Rating	IP20
No. of pins	3-pin
Number of Poles	3
Overload release current setting	1-1.6A
Phase failure sensitive	TRUE
Power loss	2.5W
Product Type	Overload relay
Rated operating voltage	230-690V
Rated operation power at AC-3, 230 V	0.25kW
Rated operation power at AC-3, 400 V	0.55kW
Rated permanent current Iu	1.6A
Rated short-circuit breaking capacity Icu at 400 V, AC	100kA
Switch off technique	Thermomagnetic
Type of control element	Push button
Type of electrical connection of main circuit	Other
Width	45mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
With thermal overload protection	TRUE
