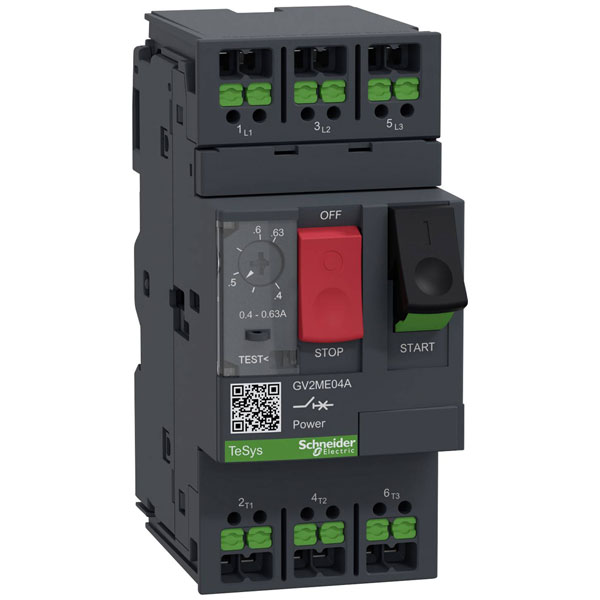

Schneider Electric GV2ME04A is a robust overload relay circuit breaker designed for efficient protection of electrical systems. As an integral component of electrical contactors, this device safeguards motors from overloads by operating within a range of 0.4 to 0.63 amperes, ensuring reliable performance in industrial applications. Its compatibility with auxiliary contactors allows for seamless integration into motor control circuits, providing enhanced safety and operational efficiency. Typical applications include motor protection in manufacturing environments and automation systems, where precise overload detection and interruption are critical. The GV2ME04A is engineered to adhere to stringent industry standards, ensuring durability and reliability in demanding conditions.
| Type |
GV2ME04A |
| Adjustment range undelayed short-circuit release |
8-8A |
| Colour |
Multicolour |
| Connection |
Snap-in |
| Content |
1 |
| Depth |
78.5mm |
| Device construction |
Complete device in housing |
| Dimensions |
(W x H x D) 45 x 101 x 78.5 mm |
| Height |
101mm |
| IP Protection |
IP20 |
| IP Rating |
IP20 |
| No. of pins |
3-pin |
| Number of Poles |
3 |
| Overload release current setting |
0.4-0.63A |
| Phase failure sensitive |
TRUE |
| Power loss |
2.5W |
| Product Type |
Overload relay |
| Rated operating voltage |
230-690V |
| Rated operation power at AC-3, 230 V |
0.09kW |
| Rated operation power at AC-3, 400 V |
0.18kW |
| Rated permanent current Iu |
0.63A |
| Rated short-circuit breaking capacity Icu at 400 V, AC |
100kA |
| Switch off technique |
Thermomagnetic |
| Type of control element |
Push button |
| Type of electrical connection of main circuit |
Other |
| Width |
45mm |
| With integrated auxiliary switch |
FALSE |
| With integrated under voltage release |
FALSE |
| With thermal overload protection |
TRUE |
