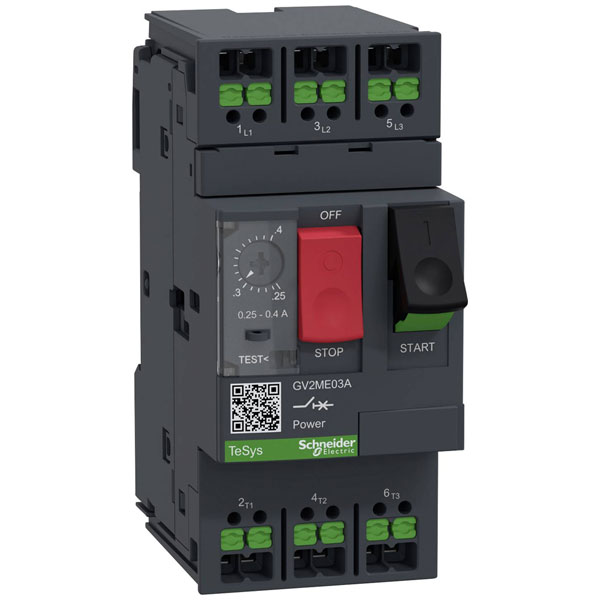

Schneider Electric GV2ME03A is a precision-engineered overload relay designed for integration within circuit breaker assemblies. This device serves as a crucial protective component in electrical contactor systems by safeguarding against overload conditions. The GV2ME03A offers robust performance with its thermal-magnetic technology, ensuring reliable operation across varied electrical environments. Commonly employed in motor control applications, this overload relay is essential for preventing motor damage by interrupting current flow when overloads are detected. Its compatibility with auxiliary contactors makes it versatile for diverse industrial automation scenarios.
| Type |
Motor Ptotection Circuit-Breaker |
| Number of Poles |
3 |
| Rated operation power at AC-3, 230 V |
0.06kW |
| Rated operation power at AC-3, 400 V |
0.09kW |
| IP Rating |
IP20 |
| Adjustment range undelayed short-circuit release |
5-5A |
| Colour |
Multicolour |
| Connection |
Snap-in |
| Content |
1 |
| Degree of protection (IP) |
IP20 |
| Depth |
78.5mm |
| Device construction |
Complete device in housing |
| Dimensions |
(W x H x D) 45 x 101 x 78.5 mm |
| Height |
101mm |
| IP Protection |
IP20 |
| No. of pins |
3-pin |
| Overload release current setting |
0.25-0.4A |
| Phase failure sensitive |
TRUE |
| Power loss |
2.5W |
| Rated operating voltage |
230-690V |
| Rated permanent current Iu |
0.4A |
| Rated short-circuit breaking capacity Icu at 400 V, AC |
100kA |
| Switch off technique |
Thermomagnetic |
| Type of control element |
Push button |
| Type of electrical connection of main circuit |
Other |
| Width |
45mm |
| With integrated auxiliary switch |
FALSE |
| With integrated under voltage release |
FALSE |
| With thermal overload protection |
TRUE |
