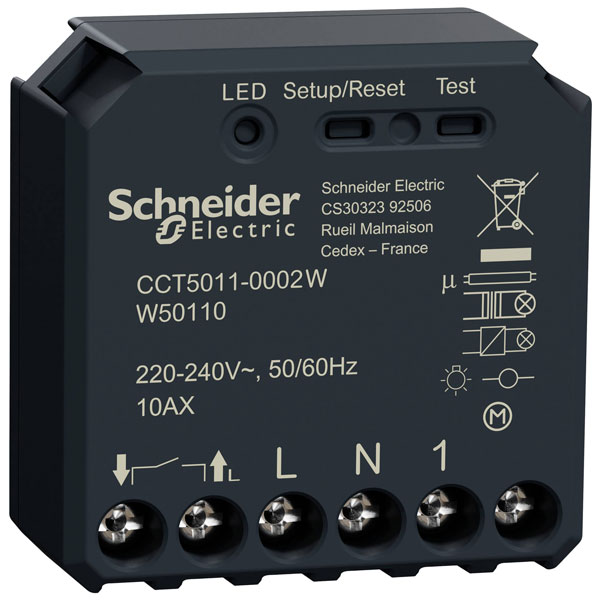

Schneider Electric CCT5011-0002W Wiser actuator Zigbee smart home control

Schneider Electric's CCT5011-0002W actuator is designed for precise control in automation systems. It features robust performance and compatibility with a variety of devices. This actuator is typically used in residential and commercial smart home applications.

Type	Actuator
Number of Digital Inputs	N/A
Bus module detachable	false
Bus system KNX	false
Bus system KNX-RF (Radio Frequency)	false
Bus system LON	false
Bus system Powernet	false
Bus system radio frequency	true
Channels	1
Degree of protection (IP)	IP20
Depth	22mm
Different phases connectable	false
Dim	(W x H x D) 43 x 43 x 22 mm
Energy efficiency rating	n.rel.
Factory colour	Dark grey
Height	43mm
Hub	Required
Local operation/hand operation	true
Max. number of switching contacts	1
Max. switching current	10A
Max. switching power	2200W
Max. switching power LED	200W
Min. depth of built-in installation box	22mm
Modular expandability	false
Mounting	Wall
Mounting method	Flush-mounted
Other bus systems	Zigbee
Output Power	2200W
Power Consumption	0.4W
Power supply (LOV)	mains-powered
Radio frequency bidirectional	true
Rated current	10A
Rated operating voltage	230 - 230V
Series	Wiser
Suitable for C-load	false
Used at	Indoors
Weight	0
Width	43mm
Width in number of modular spacings	N/A
With bus connection	true
With LED indication	true
