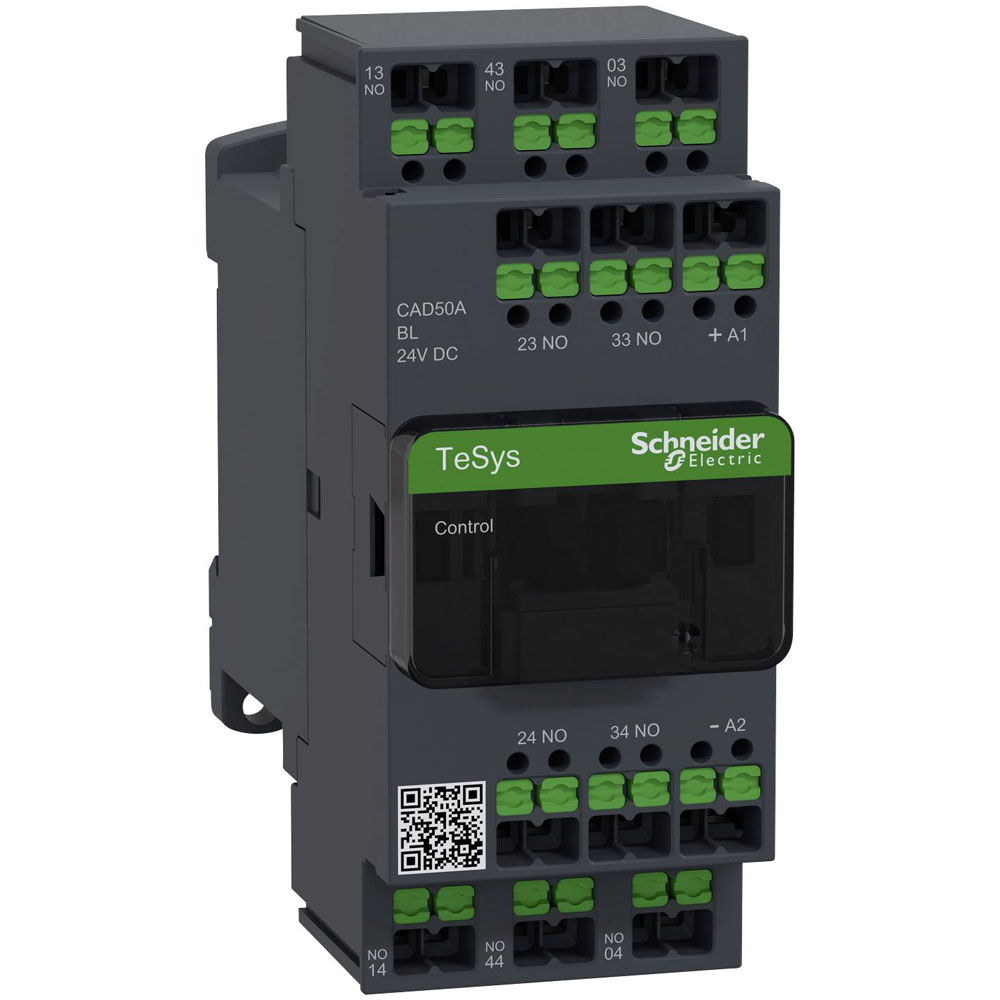

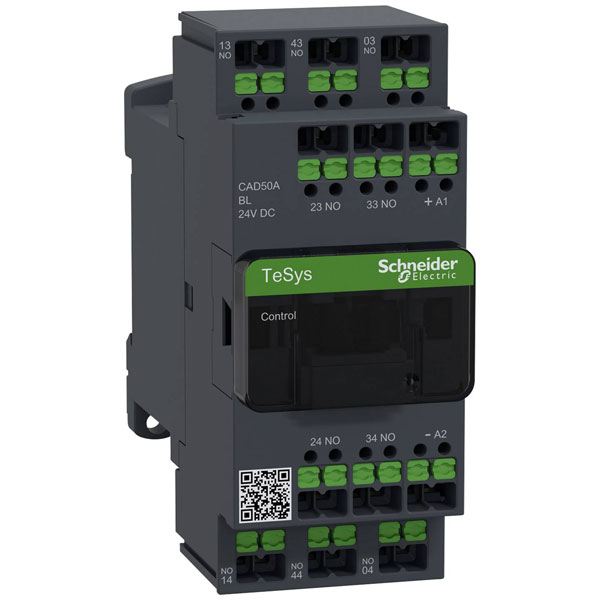

Schneider Electric's CAD50ABL is a robust auxiliary contactor designed to provide reliable switching performance with its circular contacts configuration. This component features five making contacts, enhancing its capability to handle diverse operational tasks in electrical control systems. Typically used in industrial automation, the CAD50ABL is suitable for integration into control panels, motor control circuits, and automated systems, offering efficient and stable auxiliary switching. Its application is ideal for engineers tasked with managing complex control processes where precision and durability are paramount.
| Type |
CAD50ABL |
| Connection |
Snap-in |
| Connection type auxiliary circuit |
Other |
| Contact Type |
5 makers |
| Content |
1 |
| Control voltage (max.) |
24V DC |
| Control voltage range |
24 V DC (max) |
| Depth |
93mm |
| Dimensions |
(W x H x D) 45 x 107 x 93 mm |
| Height |
107mm |
| Interface |
FALSE |
| IP Rating |
IP20 |
| Mounting method |
Other |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally closed contact, delayed switching |
0 |
| Number of auxiliary contacts as normally open contact |
5 |
| Number of auxiliary contacts as normally open contact, leading |
0 |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Operating voltage DC |
690-690V |
| Product Type |
Auxiliary contactor |
| Rated control supply voltage AC 50 Hz |
N/A |
| Rated control supply voltage AC 60 Hz |
N/A |
| Rated control supply voltage DC |
24-24V |
| Rated operation current |
10A |
| Rated operation current Ie, 400 V |
10A |
| Rated switch current |
0.005A |
| Suitable for manual operation |
FALSE |
| Voltage type (operating voltage) |
DC |
| Voltage type for actuating |
DC |
| Width |
45mm |
| With LED indication |
FALSE |
