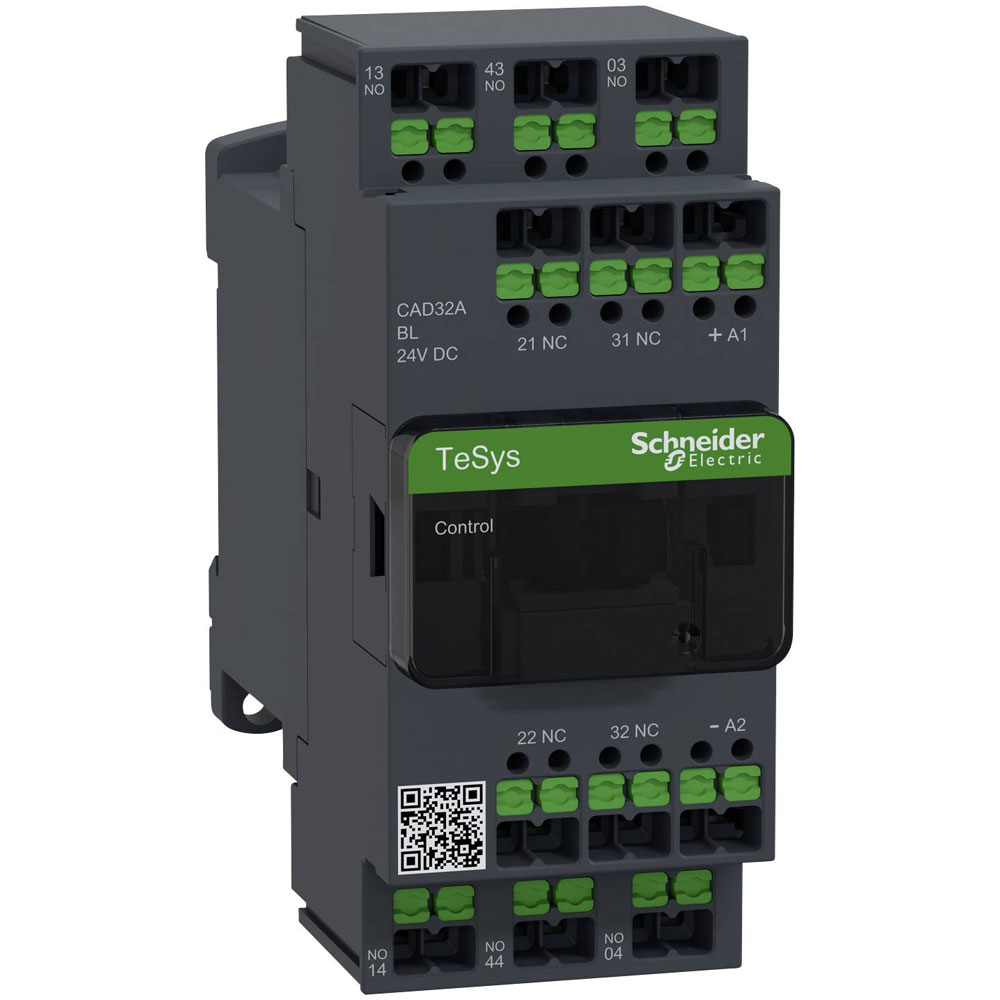

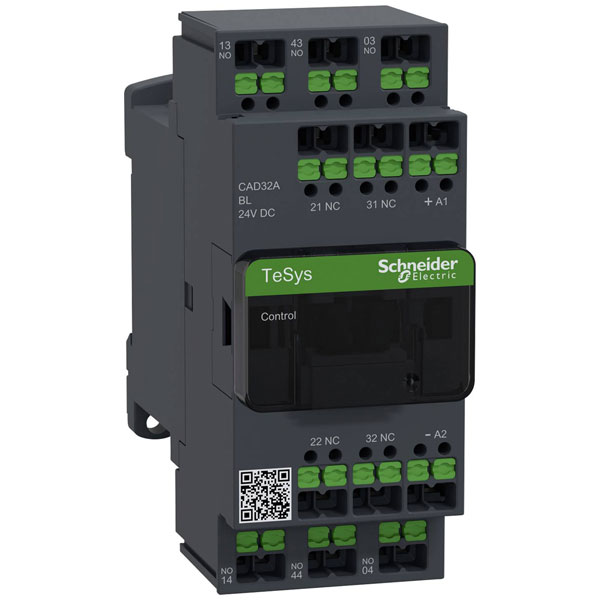

Schneider Electric's CAD32ABL Auxiliary Contactor features as its Manufacturer's Part Number CAD32ABL. This component is equipped with circular contacts, and it is designed with a configuration of three normally open (maker) contacts and two normally closed (breaker) contacts, making it suitable for a range of auxiliary control applications in electrical circuits. The CAD32ABL is engineered to enhance control circuit reliability and can be integrated into starter applications or motor control systems where additional contact configuration is required. Given its robust design and compliance with industry standards, this auxiliary contactor is commonly utilised in automation panels, HVAC systems, and machinery requiring precise and dependable contact actuation.
| Type |
CAD32ABL |
| Connection |
Snap-in |
| Connection type auxiliary circuit |
Other |
| Content |
1 |
| Control voltage (max.) |
24V DC |
| Control voltage range |
24 V DC (max) |
| Depth |
93mm |
| Dimensions |
(W x H x D) 45 x 107 x 93 mm |
| Height |
107mm |
| Interface |
FALSE |
| IP Rating |
IP20 |
| Mounting Method |
Other |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
2 |
| Number of auxiliary contacts as normally closed contact, delayed switching |
0 |
| Number of auxiliary contacts as normally open contact |
3 |
| Number of auxiliary contacts as normally open contact, leading |
0 |
| Operating Voltage Dc |
690-690V |
| Product Type |
Auxiliary contactor |
| Rated control supply voltage DC |
24-24V |
| Rated operation current |
10A |
| Rated operation current Ie, 400 V |
10A |
| Rated switch current |
0.005A |
| Suitable for manual operation |
FALSE |
| Voltage type (operating voltage) |
DC |
| Voltage type for actuating |
DC |
| Width |
45mm |
| With LED indication |
FALSE |
