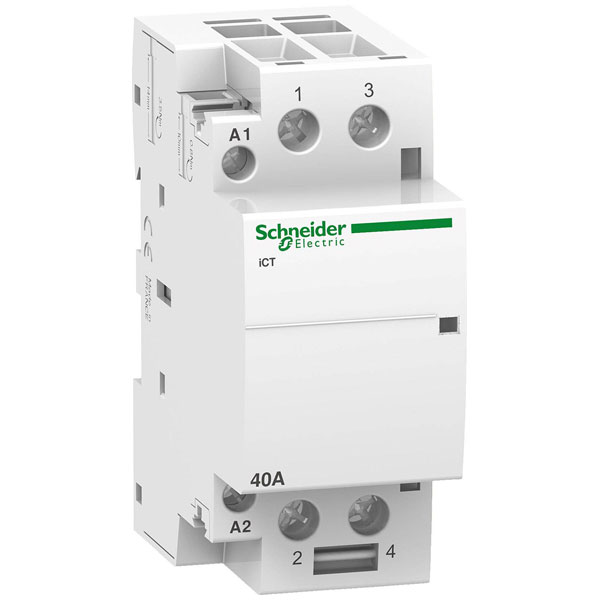

Schneider Electric offers the A9C20842 remote switch designed for efficient electrical switching with a 1.6 W power consumption at 250 V AC and a current rating of 40 A. It is commonly used in automated systems and facilities where remote control of electrical circuits is critical. This contactor is well-suited for both residential and industrial applications, ensuring reliable operation.
| Type |
Remote switch |
| Coil Voltage |
250V AC |
| Additional equipment possible |
true |
| Built-in depth |
43.5mm |
| Contact Current Rating |
40A |
| Contact Type |
2 makers |
| Control voltage (max.) |
240V AC |
| Control voltage (min.) |
220V AC |
| Control voltage range |
220 - 240 V AC |
| Current load |
40A |
| Degree of protection (IP) |
IP20 |
| Depth |
60mm |
| Dimensions |
(W x H x D) 36 x 85 x 60 mm |
| Durability |
1 000 000 cycles |
| Electrical lifespan |
100000 cycles |
| Height |
85mm |
| Hum-free |
false |
| IP Rating |
IP20 |
| Max. incandescent lamp load |
5250W |
| Max. load fluorescent lamp |
2400VA |
| Max. load fluorescent lamp (Duo circuit) |
3800VA |
| Max. load fluorescent lamp (parallel compensated) |
2400VA |
| Maximum Temperature |
+60°C |
| Min. temperature |
-5°C |
| Mounting Style |
Screw-fit |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
2 |
| Number of modular spacings |
2 |
| Number of Poles |
2 |
| Power |
1.6W |
| Power Rating |
1.6 |
| Rated excitation voltage |
220 - 240V |
| Rated operating voltage |
250 - 250V |
| Rated operation current |
40A |
| Recess depth |
43.5mm |
| Slider for hand switch |
false |
| Terminals |
2-pin |
| Utility category |
7 |
| Utilization category according to EN IEC 60947-4-1 |
N/A |
| Voltage type (excitation voltage) |
AC |
| Voltage type (operating voltage) |
AC |
| Width |
36mm |
| Width in number of modular spacings |
2 |
| With day/night function |
false |
