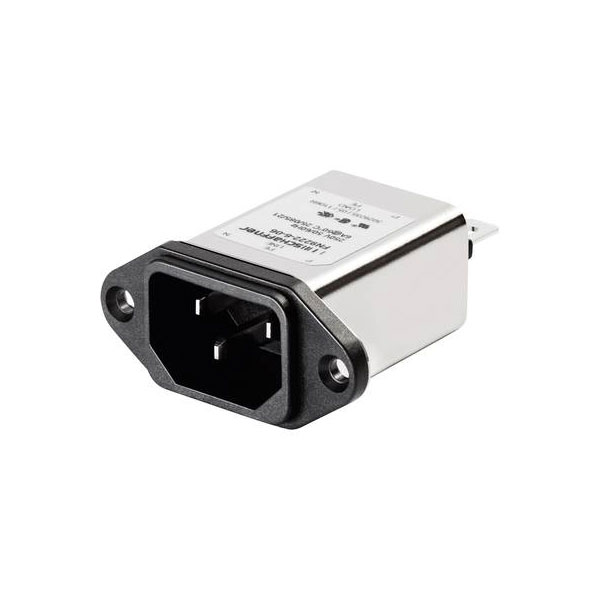

Schaffner EMC FN 9222-1-06 1A IEC inlet Filter

A 1A inlet filter from the FN 9222 range that combines an IEC inlet and a mains filter to provide an inlet filter that gives high performance and extreme reliabilty in a small form factor. Suitable for a wide range of general purpose useage such as portable equipment, small to medium-sized machines, single phase power supplies and switch mode power supplies, test and measurement equipment, rack mounting equipment.

• High filter attenuation
• Excellent performance/size ratio
• Faston terminals 6.3mm
• Operating temperature: -25°C to +85°C
• Nominal voltage: 250V AC
• MTBF 3,040,000 hours
• Design correseponding to UL, CSA, IEC/EN
• UL 94V-2 rated
