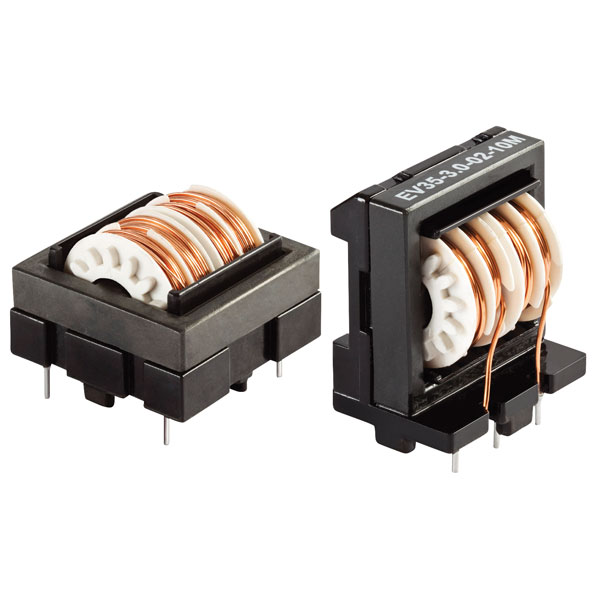

Schaffner EMC EH/EV Series Common Mode Suppression Chokes 250V AC

Schaffner EMC Brand: Schaffner EMC

A range of common mode suppression chokes that are designed as EMC/EMI filters, especially on AC power lines. Typical applications include SMPS Input filters, filters to reduce leaking noise, electric ballast, AC/AC converters, etc.

  • Compact and lightweight
  • Low magnetic leakage flux
  • 250V Rated voltage
  • Operating temperature -25°C to +100°C
  • Sectional winding
  • Standard foot print
  • Broadband attenuation characteristics
  • Low magnetic leakage flux
  • UL rated materials
Description Image Product Buy Pricing (Ex VAT)
Schaffner EH24-0.5-02-44M 44mH 0.5A 250V Common Mode Suppression Choke Horiz.
Schaffner EH24-0.5-02-44M 44mH 0.5A 250V Common Mode Suppression Choke Horiz.
Standard range
Order code: 64-9496
MPN: EH24-0,5-02-44M

52 in stock, despatched in 4 working days
3+ £1.47
Price per unit Ex VAT
Schaffner EH24-4.0-02-0M5 0.5mH 4A 250V Common Mode Suppression Choke Horiz.
Schaffner EH24-4.0-02-0M5 0.5mH 4A 250V Common Mode Suppression Choke Horiz.
Standard range
Order code: 64-9499
MPN: EH24-4,0-02-0M5

163 in stock, despatched in 4 working days
3+ £1.47
Price per unit Ex VAT
Schaffner EV24-0.5-02-44M 44mH 0.5A 250V Common Mode Suppression Choke Vert.
Schaffner EV24-0.5-02-44M 44mH 0.5A 250V Common Mode Suppression Choke Vert.
Standard range
Order code: 64-9504
MPN: EV24-0,5-02-44M

250 in stock, despatched in 4 working days
3+ £1.66
Price per unit Ex VAT
Schaffner EV24-1.0-02-10M 10mH 1A 250V Common Mode Suppression Choke Vert.
Schaffner EV24-1.0-02-10M 10mH 1A 250V Common Mode Suppression Choke Vert.
Standard range
Order code: 64-9505
MPN: EV24-1,0-02-10M

127 in stock, despatched in 4 working days
3+ £1.66
Price per unit Ex VAT
Order codePart numberL nom. (mH)I (A)DC Resistance (mΩ)Dims. (mm)
Horizontal mounting
64-9492EH20-0.5-02-18M180.572521 x 21 x 17.8
64-9493EH20-1.0-02-3M93.9116821 x 21 x 17.8
64-9494EH20-1.5-02-1M81.81.57221 x 21 x 17.8
64-9495EH20-2.0-02-0M80.8223821 x 21 x 17.8
64-9496EH24-0.5-02-44M440.5125024 x 24 x 20
64-9497EH24-1.0-02-10M10124424 x 24 x 20
64-9498EH24-2.0-02-2M52.526224 x 24 x 20
64-9499EH24-4.0-02-0M50.541624 x 24 x 20
Vertical mounting
64-9500EV20-0.5-02-18M180.572521 x 16 x 25
64-9501EV20-1.0-02-3M93.9116821 x 16 x 25
64-9502EV20-1.5-02-1M81.81.57221 x 16 x 25
64-9503EV20-2.0-02-0M80.8223821 x 16 x 25
64-9504EV24-0.5-02-44M440.5125024.6 x 17.4 x 29.1
64-9505EV24-1.0-02-10M10124424.6 x 17.4 x 29.1
64-9506EV24-2.0-02-2M52.526224.6 x 17.4 x 29.1
64-9507EV24-4.0-02-0M50.541624.6 x 17.4 x 29.1
